Working Principle Of Segmented Ball Valves: How To Handle Complex Media Such As High Viscosity, Particulate Matter, And Easy Crystallization.
Industrial processes often involve challenging media like high-viscosity fluids, abrasive slurries, and crystallizing liquids. Standard valves frequently clog or wear out rapidly under these harsh conditions. A segment ball valve offers a reliable solution, engineered specifically to maintain precise flow control while resisting material buildup and mechanical wear.
What is a Segment Ball Valve?

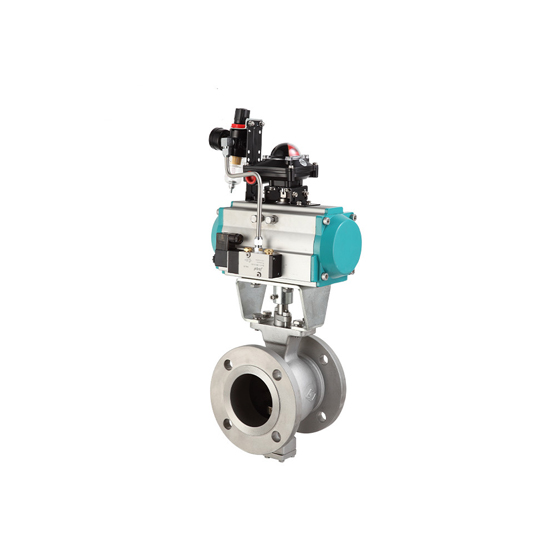

A segment ball valve is a high-performance control valve featuring a specially designed V-notch or curved segment instead of a full spherical ball. This distinct ball segment rotates against a heavy-duty seat to regulate or isolate fluid flow.
A segment ball valve utilizes a V-notched segment ball that creates a sharp cutting action against the seat. This design effectively shears through thick solids, high-viscosity polymers, and crystalline scales, ensuring tight shut-off and preventing valve clogging in severe applications.
How the Mechanism Prevents Media Buildup
The inherent geometry of the valve directly addresses the common failure points found in standard piping systems handling difficult fluids.
Shearing Action and Self-Cleaning
As the ball segment valve rotates, the sharp edge of the V-notch shears through fibers and solid particles. This continuous wiping action cleans the sealing surface with every stroke, preventing material accumulation.
Non-Clogging Flow Path
Unlike traditional designs, the straight-through flow path minimizes turbulence and dead zones. Thick fluids and crystals move continuously through the body without settling in internal cavities.
Key Performance Comparison
| Media Challenge | Standard Valve Issue | Ball Segment Valve Solution |
|---|---|---|
| High Viscosity | High torque, stagnation | Contoured body reduces fluid friction |
| Solid Particles | Severe seat abrasion | Hardened coatings deflect particles |
| Crystallization | Actuator jamming | Eccentric rotation lifts segment away |
Applications in Severe Service Conditions
Processor plants rely on this technology across three primary challenging environments.
-
Paper Pulp Handling: The segment ball design cuts through dense fibrous slurries without dewatering the media.
-
Chemical Crystallization: The eccentric shaft design prevents the ball segment from dragging across the seat, reducing component wear.
-
Mining Slurries: Hard-faced internal coatings withstand continuous abrasion from sand, tailings, and mineral deposits.
Managing complex fluids requires robust equipment designed for severe service. The unique cutting action and open flow geometry of the segment ball valve ensure consistent operational uptime, low maintenance costs, and precise control for demanding industrial applications.
