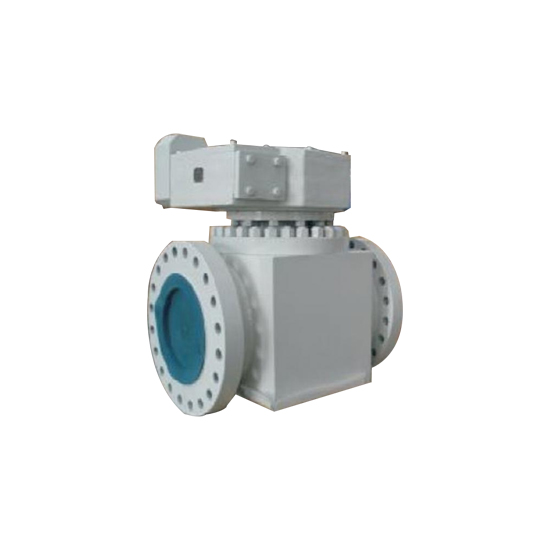

Operational Conditions For Top Entry Ball Valve Selection
Choosing the right valve ensures pipeline safety and efficiency. A top entry ball valve is designed for critical applications where inline maintenance is required. This guide examines the specific operational conditions that demand this valve type.
Critical Settings Requiring Top Entry Ball Valves
Top entry ball valves excel in severe environments. Engineers and maintenance personnel select them based on specific system demands:
-
High-Temperature Systems: They operate efficiently in temperatures exceeding 450°C.
-
High-Pressure Pipelines: Ideal for ASME Class 1500 and higher ratings.
-
Corrosive Media Processing: Suitable for chemical processing handling acids and slurries.
When to Choose a Top Entry Design
A top entry ball valve is required when a pipeline demands zero-leakage isolation under high pressure, combined with the necessity for regular inline maintenance without removing the valve body from the piping system.
Technical Specifications and Variations
Different configurations suit distinct flow control needs. While a top entry butterfly valve handles low-pressure large-volume flows, ball designs manage high-pressure isolation.
Floating vs. Trunnion Designs
-
Top Entry Floating Ball Valve: This design utilizes upstream pressure to push the ball against the downstream seat, creating a tight seal in low-to-medium pressure systems.
-
Trunnion Mounted Design: This structure fixes the ball at the top and bottom, making it perfect for high-pressure, large-diameter pipelines.
| Valve Type | Pressure Range | Primary Use Case |
|---|---|---|
| Floating Ball | ASME 150-600 | Small diameter, low pressure |
| Trunnion Ball | ASME 600-2500 | Large diameter, high pressure |
Selecting a Top Entry Ball Valve Manufacturer
Procuring these components requires careful evaluation of technical capabilities. Partnering with an experienced top entry ball valve manufacturer ensures compliance with API 6D and industry safety standards.
Evaluation Criteria
-
Material Certification: Ensure the factory provides verified records for duplex steel or alloy bodies.
-
Testing Standards: Look for facilities performing firesafe testing according to API 607.
Proper assessment guarantees long-term reliability and reduces unexpected pipeline downtime.
