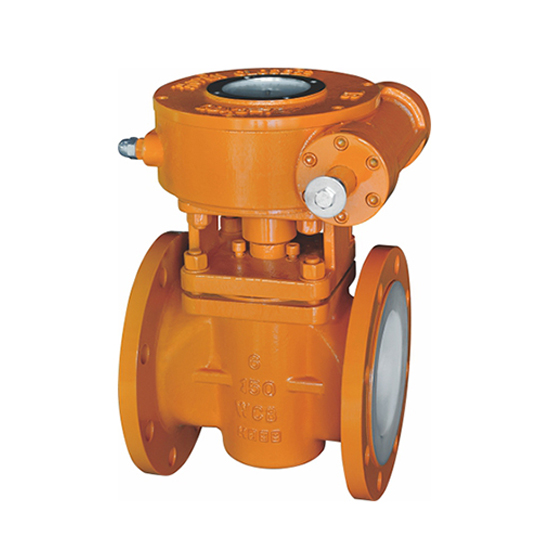

Teflon Lined Plug Valve, API 6D, A216 WCB, 6 Inch, CL150, RF

Key Specifications / Features

The Teflon Lined Plug Valve meets API 6D standards and is constructed from carbon steel ASTM A216 WCB for durability and strength. Designed for 6-inch (DN150) pipelines, it operates at Class 150 LB (PN20) pressure rating with RF flanged ends for secure connections. The valve features a Teflon lining for superior chemical resistance, making it ideal for corrosive media. Equipped with a gearbox for smooth operation, this plug valve ensures reliable performance in demanding industrial applications.

The Teflon-Lined Plug Valves are available in two types: the fully lined plug valve and the semi-lined bushing stopcock. Primarily designed for flow shutoff, these valves can also be used for fluid distribution in three-way configurations. The fluorine-lined construction ensures compatibility with a wide range of corrosive media, including various concentrations of water, sulfuric acid, hydrochloric acid, hydrofluoric acid, organic acids, strong acids, and oxidizing agents, within a temperature range of -29°C to +180°C. Additionally, FEP lining provides excellent resistance to strong alkaline organic solvents, as well as other corrosive gases and liquids.

Technical Specification

» Product: Teflon Lined Plug Valve
» Nominal Diameter: 1/2-14 Inch (DN15-DN350)
» Normal Pressure Rating: PN10-PN16, Class 150-300 LB
» Body Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Lining Material: PTFE, PFA, PO, FEP
» Operation Method: Manual, Worm Gear, Electric, Pneumatic Actuator
» Temperature Range: -29°C to +180°C
» Applicable Media: Sulfuric Acid, Hydrochloric Acid, Hydrofluoric Acid, Various Organic Acids, Strong Acids, Strong Oxidizing Agents, Acid, Alkali, aqua regia, etc.

Standards Compliance

» Design and Manufacture: API 6D, HG/T 3704, GB/T 12240
» Face to Face (End to End): ANSI B16.10, GB/T 12221
» Flanged Connection: ANSI B16.5, GB/T 9119
» Test and Inspection: API 598, GB/T 13927

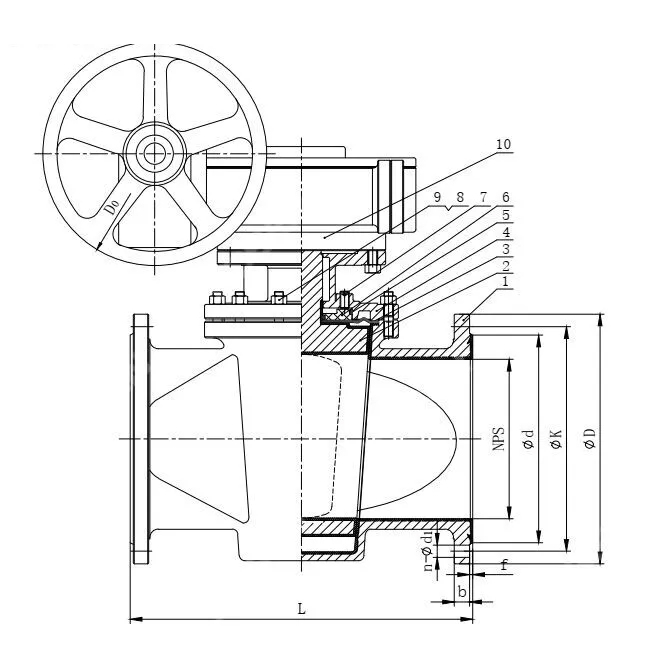

Material for Main Parts
