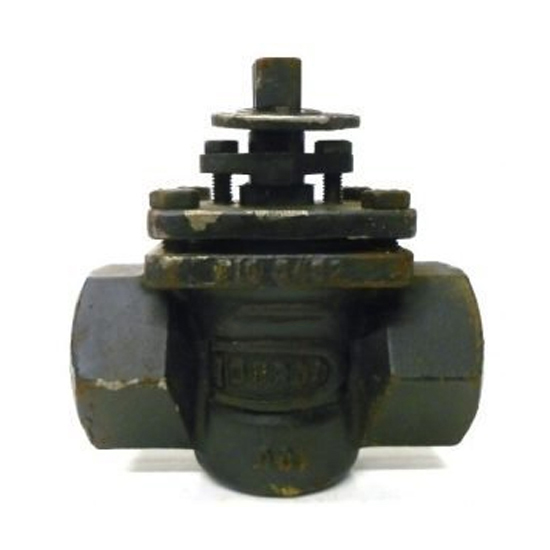

ASTM A216 WCB Sleeved Plug Valve, API 599, 2-1/2 Inch, CL300

Key Specifications / Features

The ASTM A216 WCB Sleeved Plug Valve is a high-quality valve designed for efficient flow control in industrial systems. Featuring a carbon steel body (ASTM A216 WCB), it offers soft sealing for a reliable and leak-proof shutoff. With a 2-1/2 inch size (DN65), it operates at a Pressure Class of 300 LB and PN50. Compliant with API 599 standards, the valve is equipped with NPT (National Pipe Thread) threaded ends for easy installation. Ideal for a wide range of applications, including oil, gas, and water systems, it provides durable and efficient performance.

Product Description

The Sleeve Type Soft Sealing Plug Valve is engineered with a unique 360-degree metal lip protection fixed card, ensuring there are no cavities to accumulate medium. The valve features a rotary plug with a metal lip, which provides a self-cleaning effect, making it ideal for environments with sticky or scaling media. With its two-way flow design, it offers more convenient installation and operation. This valve is specifically suitable for harsh environments, including applications involving corrosive, highly toxic, or hazardous media, where leakage is strictly prohibited. The valve's design also ensures that the material will not pollute the medium, offering an added layer of safety and performance. The body material can be selected from carbon steel, alloy steel, or stainless steel based on the specific working medium and application requirements.

Technical Specification

» Nominal Diameter: NPS 1/2-4 Inch (DN15-DN100)
» Design Pressure: Class 150-300 LB (PN20-PN50)
» Material:
   ASTM A216 WCB, WCC
   ASTM A352 LCB, LCC
   ASTM A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M
   ASTM A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN)
   ASTM B148 C95800, C95500
» Design Standard: API 6D, API 599
» Face to Face: ASME B16.10
» Connection End: RF, RTJ, BW
» Test Standard: API 598, ISO 5208
» Operation: Lever, worm gear, electric, pneumatic
» Design Temperature: -46°C to +120°C
» Medium: Water, gas, oil, etc.
» Applications: Petrochemical, chemical, natural gas, LPG, HVAC, food, and pharmaceuticals
» Basic Functions
   Function 1: Optional bore patterns: Venturi, Regular, Short, Standard
   Function 2: Metal-to-metal seated design
   Function 3: Injection grease-sealed design (for stem and seats)
   Function 4: Fire-safe design
   Function 5: Integral seat ring
