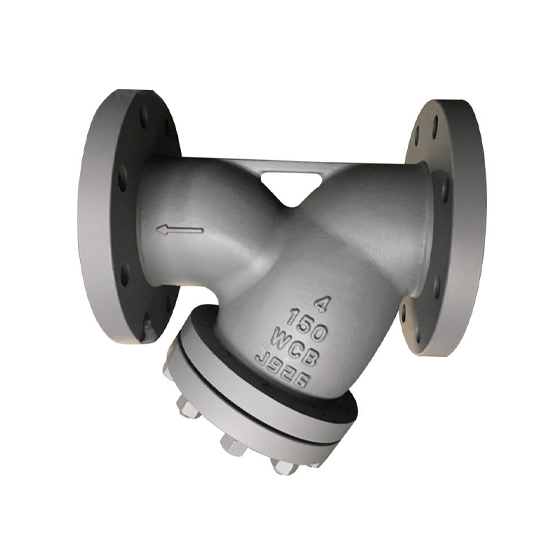

Carbon Steel ASTM A216 WCB Y Strainer, 4 IN, 150 LB, RF Ends
- Product Name:
- Carbon Steel ASTM A216 WCB Y Strainers
- Type:
- Y Type Strainer
- Design Standard:
- ASME B16.34
- Body Material:
- ASTM A216 WCB
- Size:
- 4 Inch
- Pressure:
- Class 150 LB
- End Connection:
- RF Flanged
- Temperature Range:
- -29°C to 425°C
- Medium:
- Steam, High-temperature Steam, Gas, Oil
- Screen Material:
- SS 304
Key Specifications / Features
The Cast Carbon Steel Y Strainer Supplier offers a robust and reliable pipe strainer designed for effective filtration in industrial piping systems. This Y strainer features a durable ASTM A216 WCB body and a high-quality SS 304 screen, ensuring strength and corrosion resistance. With a 4-inch (DN100) size and a pressure rating of Class 150 LB (PN20), it provides efficient flow control and debris removal. The raised face (RF) flanged ends facilitate secure and leak-free connections, making it an ideal choice for maintaining system efficiency and preventing damage from particulates.
Y-type strainers are essential high-efficiency filtration devices in purification engineering, playing a significant role in treating domestic and industrial wastewater. They are highly favored across various industries due to their numerous design and application advantages. These strainers effectively process large volumes of wastewater, enabling the efficient reuse of valuable water resources and conserving significant amounts of water. Their operational benefits include full automation, maintenance-free operation, a large filtration area, high filtration efficiency, long service life, stainless steel construction, customizable filtration accuracy, and comprehensive specifications. Compared to other filtration equipment, Y-type strainers are among the most effective in engineering, ensuring that treated water meets national discharge standards while achieving the goals of reuse and recycling.
Technical Specifications
» Size Range: 1/2-24 Inch (DN15 to DN600)
» Pressure Rating: PN16-PN420, Class 150-2500 LB
» Materials: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtration Accuracy:
18–30 mesh (water filter)
10–100 mesh (air filter)
100–480 mesh (oil filter)
» Temperature Range: -29°C to +425°C
» Ends Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil
Standards Compliance
» Design and Manufacture: ANSI B16.34, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch per ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

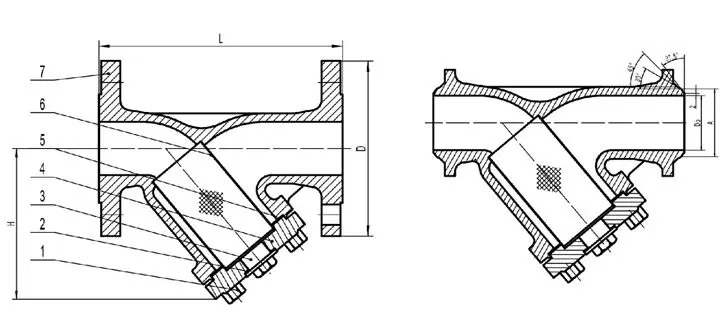

Structural Diagram
Material for Main Parts
| No | Name of Parts | Carbon steel | Stainless steel | Stainless steel |
| 1 | Bolt | A193 B7 | A193 B8 | A193 B8M |
| 2 | Gasket | Copper Alloy | Copper Alloy | Copper Alloy |
| 3 | Drain plug | A105 | SS 304 | SS 316 |
| 4 | Bonnet | A216 WCB | A351 CF8 | A351 CF8M |
| 5 | Gasket | Graphite+SS | Graphite+SS | Graphite+SS |
| 6 | Screen | SS 304 | SS 304 | SS 316 |
| 7 | Body | A216 WCB | A351 CF8 | A351 CF8M |
