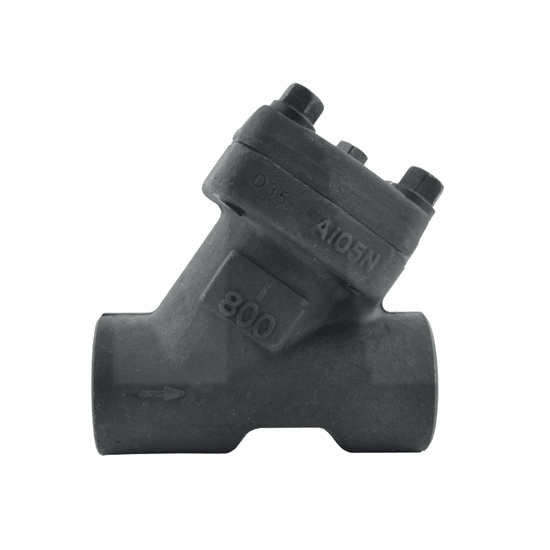

Forged Carbon Steel Y Strainer, ASTM A105N, 1 IN, CL800, NPT

Key Specifications / Features

The Forged Carbon Steel Y Strainer Plant offers a high-quality Y Type Strainer meticulously designed in accordance with ASME B16.34 and ASTM A105N standards. This strainer features a 1-inch (DN25) size with Class 600 LB and PN100 pressure ratings, ensuring robust performance and durability. Its NPT threaded ends facilitate easy installation and integration into existing piping systems. Ideal for filtering impurities in fluid lines, this strainer is a reliable choice for maintaining system efficiency and preventing clogging.

The Forged Y Strainer is designed with a simple structure, low resistance, and convenient discharge capabilities. It is typically installed at the inlet of various equipment to remove impurities from the medium, thereby protecting valves and equipment from damage and ensuring their normal operation. The Forged Y Strainer features a bolt-type valve cover, with the valve body and cover connected via bolts. The sealing is achieved using a winding type gasket (304 stainless steel plus flexible graphite) or a metal ring connection. The standard mesh size for the filter screen is 18-30 mesh per inch. However, the filter screen can be customized to meet specific user requirements.

Technical Specifications

Size Range: 1/2-2 Inch (DN15-DN50)
Pressure Rating: PN16-PN420 / Class 150-2500 LB
Material Options: ASTM A105N, A182 F11, F22, F304, F304L, F316, F316L

Standards Compliance

Design & Manufacture: API 602
Face-to-Face Dimensions: ASME B16.10
Flanged Ends: ASME B16.5
Butt Weld Ends: ASME B16.25
Socket Weld Ends: ASME B16.11
Threaded Ends: ASME B1.20.1
Testing & Inspection: API 598
