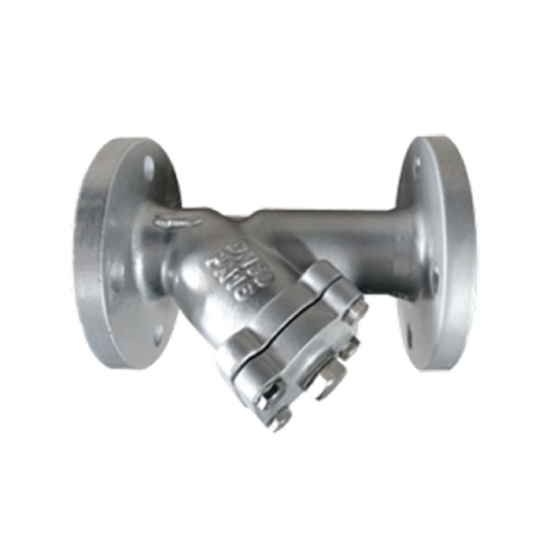

ASTM A105N Y Strainers, ASME B16.34, 3/4 IN, DN80, PN16, RF

Key Specifications / Features

Our China ASTM A105N Y Strainers Factory produces high-quality Y strainers designed to meet ASME B16.34 standards. These strainers feature a forged carbon steel body, ensuring durability and strength. Available in a 3/4 inch (DN20) size, they are rated for Class 300 LB and PN25 pressure, making them suitable for various industrial applications. The strainers come with RF flanged ends for secure and reliable connections. They are ideal for filtering debris and protecting downstream equipment in fluid systems.

The Forged Y Strainer is designed with a simple structure, low resistance, and convenient discharge mechanism. It is typically installed at the inlet of various equipment to remove impurities from the medium, thereby protecting the normal operation of valves and equipment. The Forged Y Strainer features a bolt-type valve cover, with the valve body and cover connected via bolts. The seal is achieved using a winding type gasket (304 plus flexible graphite) or a metal ring connection. The standard mesh size for the filter screen is 18-30 mesh per inch, but it can be customized to meet specific user requirements.

Technical Specification

» Normal Size Range: 1/2 inch to 2 inches (DN15-DN50)
» Normal Pressure Rating: PN16-PN420, Class 150 to 2500 LB
» Material: ASTM A105N, A182 F11, F22, F304, F304L, F316, F316L
» Temperature Range: -29°C to +425°C

Standards Compliance

» Design and Manufacture: API 602
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5
» Butt Welded End: ASME B16.25
» Socket-Welding Ends: ASME B16.11
» Screwed Ends: ASME B1.20.1
» Test and Inspection: API 598
