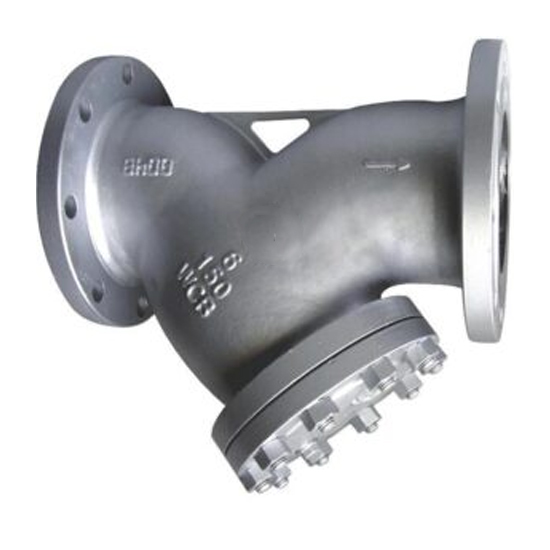

ASTM A216 WCB Y Strainers, ASME B16.34, 6 Inch, 150 LB, RF
- Product Name:
- ASTM A216 WCB Y Strainers
- Design Standard:
- ASME B16.34
- Body Material:
- ASTM A216 WCB
- Size:
- 6 Inch
- Pressure:
- Class 150 LB
- End Connection:
- RF Flanged
- Screen Material:
- SS 304
Key Specifications / Features
The ASTM A216 WCB Y Strainer, manufactured according to ASME B16.34 standards, features a carbon steel body with a SS 304 screen for durability and efficient filtration. This 8-inch (DN200) strainer is rated for Class 300 LB and PN50 pressure classes and is equipped with RF flanged ends for secure, leak-tight connections.
As an essential high-efficiency filtration device in purification systems, Y-type strainers play a significant role in the treatment of both domestic and industrial wastewater. With numerous advantages in design and application, they are widely favored in various industries. Y-type strainers have effectively processed large volumes of wastewater, contributing to the effective reuse of valuable water resources and helping conserve significant amounts of water.
The operational benefits of Y-type strainers include full automation, maintenance-free performance, a large filtration area, high filter efficiency, long service life, stainless steel construction, optional filtration accuracy, and a range of specifications. Compared to other filtration equipment, Y-type strainers are among the most efficient solutions in engineering, ensuring that water treated by the strainer meets national discharge standards and achieves the goal of reuse.
Technical Specification
» Normal Size Range: 1/2-24 Inch (DN15-DN600)
» Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A352 LF2, A217 WC6, WC9
» Filtering Accuracy:
18-30 mesh for water filter
10-100 mesh for air filter
100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» End Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil
Standards Compliance
» Design and Manufacture: ANSI B16.34, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

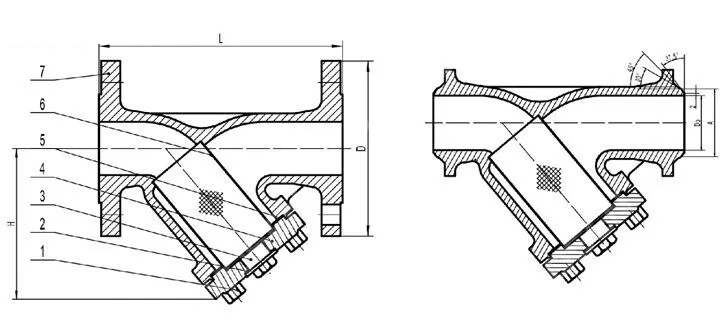

Material for Main Parts
| No | Name of Parts | Carbon steel | Stainless steel | Stainless steel |
| 1 | Bolt | A193 B7 | A193 B8 | A193 B8M |
| 2 | Gasket | Copper Alloy | Copper Alloy | Copper Alloy |
| 3 | Drain plug | A105 | SS 304 | SS 316 |
| 4 | Bonnet | A216 WCB | A351 CF8 | A351 CF8M |
| 5 | Gasket | Graphite + SS | Graphite + SS | Graphite + SS |
| 6 | Screen | SS304 | SS304 | SS316 |
| 7 | Body | A216 WCB | A351 CF8 | A351 CF8M |
