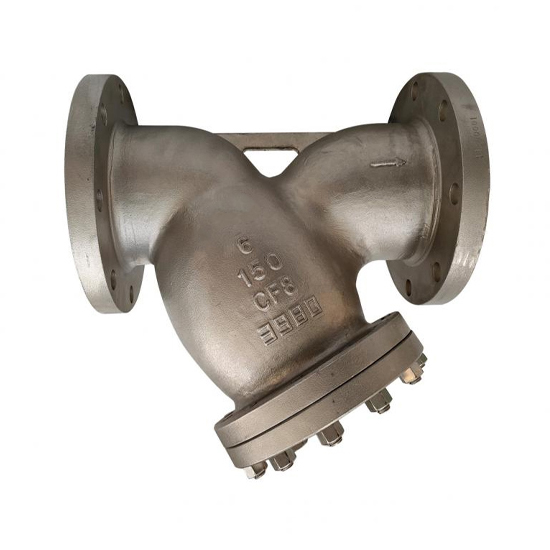

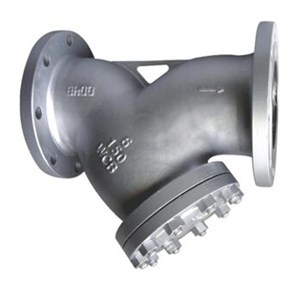

ASME B16.34 Y Strainers, WCB, SS 316 Screen, 6 Inch, 150 LB
- Product Name:
- ASME B16.34 Y Strainer
- Design Standard:
- ASME B16.34
- Body Material:
- ASTM A216 WCB
- Size:
- 6 Inch
- Pressure:
- Class 150 LB
- End Connection:
- RF Flanged
- Screen Material:
- SS 316
- Filtering Accuracy:
- 40 Mesh
Key Specifications / Features
The ASME B16.34 Y Strainers feature an ASTM A216 WCB body and SS 316 screen for enhanced corrosion resistance and durability. With a 4-inch (DN100) size, Class 150 LB, and PN20 pressure rating, they are designed for medium-pressure applications. The strainer offers a filtering accuracy of 40 mesh, ensuring effective filtration. The pipe strainer is equipped with RF (Raised Face) ends.
Y-type strainers are essential filtration devices used in wastewater treatment, particularly in domestic and industrial settings. They play a crucial role in efficiently filtering out impurities, promoting the reuse of valuable water resources, and contributing significantly to water conservation efforts. Known for their design versatility and high performance, Y-type strainers have become a popular choice in various industries for their durability, maintenance-free operation, and efficiency in filtering water, oil, gas, and steam.
Y-type Strainer Key Advantages
» Full Automation: Ensures consistent, hands-off operation.
» Maintenance-Free: Low upkeep requirements, reducing downtime.
» Large Filtration Area: Improves filtration efficiency.
» High Filtration Efficiency: Capable of achieving high-quality filtered outputs.
» Long Service Life: Durable and reliable for extended use.
» Stainless Steel Material: Enhances resistance to corrosion and wear.
» Customizable Filtration Accuracy: Selectable mesh sizes for various applications (water, air, oil).
» Comprehensive Specifications: Suitable for a wide range of flow mediums.
Technical Specifications
» Size Range: 1/2-24 Inch (DN15 to DN600)
» Pressure Rating: PN16-PN420, Class 150-2500 LB
» Materials: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtration Accuracy:
18–30 mesh (water filter)
10–100 mesh (air filter)
100–480 mesh (oil filter)
» Temperature Range: -29°C to +425°C
» Ends Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil
Standards Compliance
» Design and Manufacture: ANSI B16.34, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch per ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5
Material for Main Parts

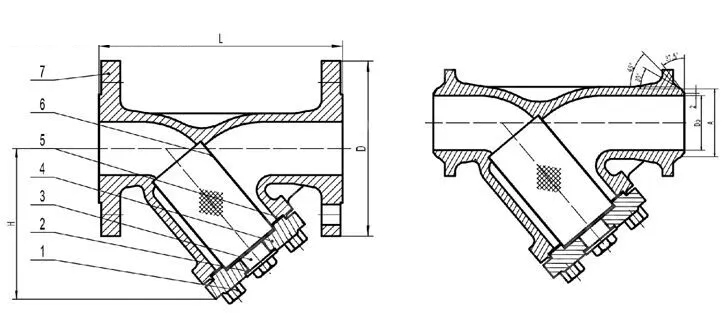

| No | Name of Parts | Carbon steel | Stainless steel | Stainless steel |
| 1 | Bolt | A193 B7 | A193 B8 | A193 B8M |
| 2 | Gasket | Copper Alloy | Copper Alloy | Copper Alloy |
| 3 | Drain plug | A105 | SS 304 | SS 316 |
| 4 | Bonnet | A216 WCB | A351 CF8 | A351 CF8M |
| 5 | Gasket | Graphite+SS | Graphite+SS | Graphite+SS |
| 6 | Screen | SS 304 | SS 304 | SS 316 |
| 7 | Body | A216 WCB | A351 CF8 | A351 CF8M |
