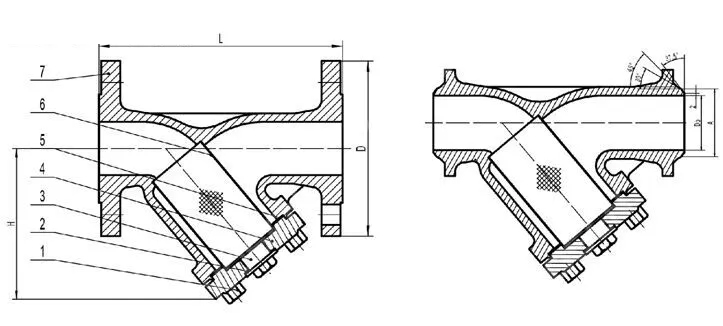

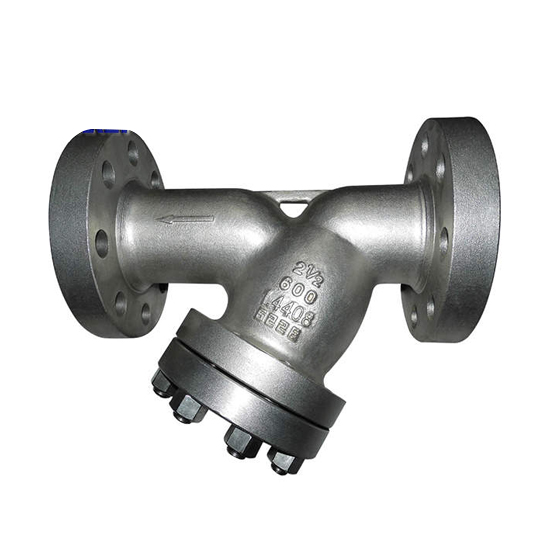

ASTM A494 CU5MCuC Y Strainer, ASME B16.34, 2-1/2 IN, CL600, RF

Key Specifications / Features

The ASTM A494 CU5MCuC Y Strainer, manufactured to ASME B16.34 standards, features a nickel alloy body for superior corrosion resistance and durability. This 3-inch (DN80) strainer is rated for Pressure Class 600 LB (PN100), making it suitable for high-pressure applications. It comes with raised face (RF) flanged ends for secure and reliable installation.

As an essential component in purification engineering, Y-type strainers have proven to be highly effective in the treatment of both domestic and industrial wastewater. Their design and application advantages have made them a preferred choice in various industries. By treating substantial amounts of wastewater, Y-type strainers help conserve valuable water resources, enabling effective reuse and contributing to water conservation efforts. Compared to other filtration systems, Y-type strainers stand out for their effectiveness in engineering, meeting national discharge standards and enabling wastewater reuse.

Key Benefits of Y-Type Strainers

» Automation & Maintenance-Free: Y-type strainers operate with full automation, requiring minimal maintenance over time.
» Large Filtration Area: The design offers a larger filtration area, ensuring higher filtration efficiency.
» High Filter Efficiency: Capable of achieving high filtration rates, Y-type strainers effectively remove impurities from water.
» Long Service Life: Made from durable stainless steel, these strainers are designed for extended use in demanding environments.
» Customizable Filtration Accuracy: Available with varying filtration accuracies to suit specific application needs.
» Comprehensive Specifications: Y-type strainers come with complete specifications, ensuring suitability for a wide range of industrial and domestic applications.

Technical Specifications

» Size Range: 1/2-24 Inch (DN15 to DN600)
» Pressure Rating: PN16-PN420, Class 150-2500 LB
» Materials: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtration Accuracy:
  Water filter: 18 to 30 mesh
  Air filter: 10 to 100 mesh
  Oil filter: 100 to 480 mesh
» Temperature Range: -29°C to 425°C
» End Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil

Standards Compliance

» Design and Manufacture: ANSI B16.34, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5
