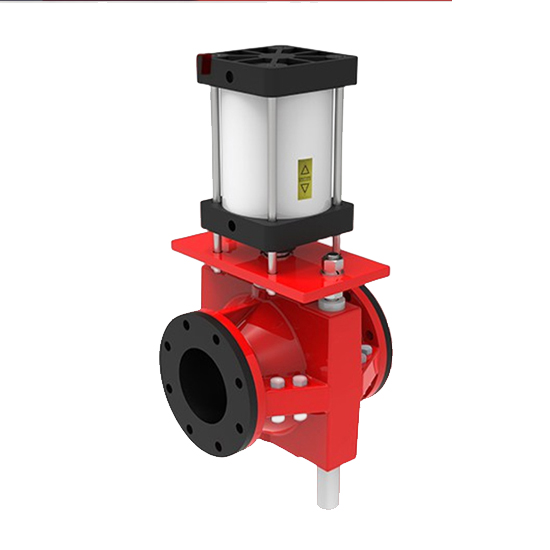

Pneumatic Actuated Pinch Valves, Rubber Sleeve, 1-40 Inch
- Product Name:
- Pneumatic Heavy Duty Pinch Valve
- Body Material:
- Cast Iron/Aluminum Alloy/Carbon Steel/Stainless Steel
- Pressure:
- 0.6 MPa/1.0 MPa/1.6 MPa, PN6-PN16
- Operation:
- Operate the hand wheel to squeeze the internal rubber hose to achieve the opening and closing function
- Size Range:
- DN25-DN1000, 1-40 Inch
- Temperature:
- -35°C to +130°C
- Rubber Sleeve Material:
- High wear-resistant red glue/NR/EPDM, etc.
- Rubber Sleeve Technology:
- Pure manual import top technology
- Flange Standard:
- PN10/16, ANSI Class 150 LB
- Control Conditions:
- Handwheel, Pneumatic, Electric
- Applicable:
- Sewage, mineral pulp, acid-base media, dry powder, etc.
Key Specifications / Features
The Pneumatic Actuated Pinch Valve offers versatile flow control across a wide range of sizes, from DN25-DN1000 (1-40 inch) and pressure ratings of PN6-PN16. It features a durable body made from cast iron, aluminum alloy, carbon steel, or stainless steel, depending on application requirements. The valve utilizes a rubber sleeve to control flow by pinching the media, ensuring precise shutoff and minimizing wear.
Pinch valves are designed for shut-off or control applications involving abrasive or corrosive slurries, powders, or granular substances. Our advanced flow control solutions are engineered to meet demanding customer specifications, helping improve process efficiency and extend service intervals. The pinch valve consists of three main components: the sleeve, the body, and the actuator. The sleeve, being the only part in contact with the process medium, plays a critical role. All three components can be customized to suit a wide range of process conditions. These valves provide a 100% tight shut-off, even in cases where solids have accumulated on the sleeve wall. When compressed, any crystallized particles are dislodged from the sleeve and washed downstream, ensuring reliable operation.
Pinch Valve Advantages
» No pressure loss, blockage, or leakage; highly resistant to impact.
» Ideal for liquid-solid and gas-solid two-phase media containing particles.
» Reinforced with cord fabric for enhanced wear, corrosion, tear, and fatigue resistance.
