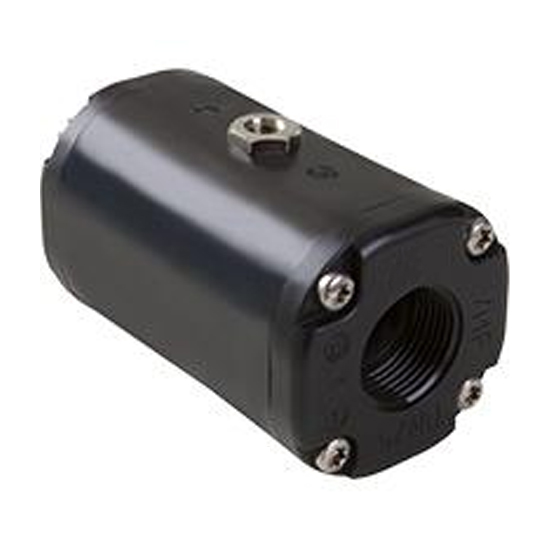

Aluminum Alloy Pinch Valve, 1/2-4 IN, Air Operated, Threaded
- Product Name:
- Aluminum Alloy Pinch Valve
- Body Material:
- Aluminum Alloy
- Operation:
- Air Operated
- Temperature Range:
- -29 to 80 Degree C
- Sleeve:
- Natural Rubber, Natural Rubber, EPDM
- Normal Size Range:
- 1/2-4 Inch (DN15-DN100)
- Thread Standard:
- EN ISO 228 G, ANSI/ASME B1.20.1 NPT
Key Specifications / Features
The Aluminum Alloy Pinch Valve is designed for efficient flow control in compact systems. Available in sizes from 1/2 to 4 inches (DN15-DN100), it features a durable rubber sleeve that ensures a tight seal and effective regulation of flow. This air-operated valve is equipped with EN ISO 228 G and ANSI/ASME B1.20.1 NPT threaded connections, providing secure installation, ideal for controlling the flow of abrasive or viscous media.
Our pinch valves are ideal for shut-off or control applications involving abrasive or corrosive slurries, powders, or granular substances. Our advanced flow control solutions are designed to meet even the most demanding customer specifications. pinch valves enhance productivity by improving process efficiency and extending service intervals.

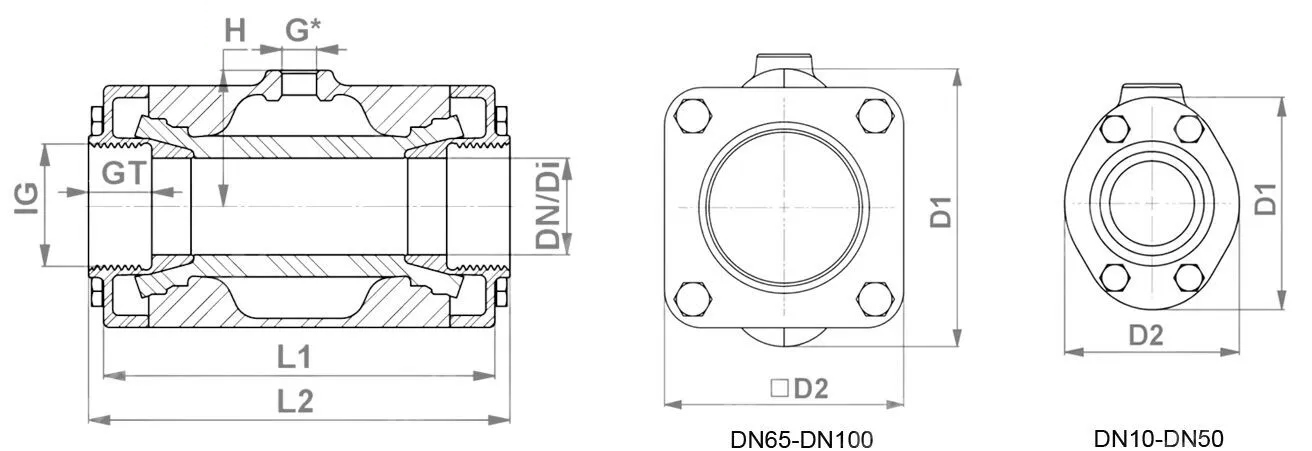

The valve design consists of three main components: the sleeve, the body, and the actuator. The sleeve is the only part in contact with the process medium. The construction and materials of all components can be tailored to suit a variety of process conditions. Our pinch valves ensure a 100% tight shut-off, even when solids accumulate on the sleeve wall. When compressed, any crystallized particles flake off the sleeve surface and are washed downstream, maintaining valve performance.
