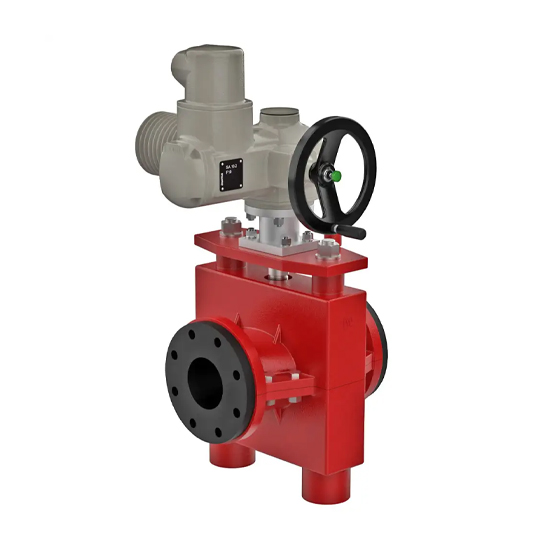

Electric Heavy Duty Pinch Valve, CS, SS, 1-40 IN, PN6-PN16
- Product Name:
- Electric Heavy Duty Pinch Valve
- Temperature Range:
- -35°C to +130°C
- Size Range:
- DN25-DN1000, 1-40 Inch
- Pressure Rating:
- 0.6 MPa/1.0 MPa/1.6 MPa, PN6-PN16
- Valve Body Material:
- Cast Iron / Aluminum Alloy / Carbon Steel / Stainless Steel
- Rubber Sleeve Material:
- High Wear-resistant Red Rubber / NR / EPDM, etc.
- Rubber Sleeve Technology:
- Manual, Top-imported Technology
- Reinforcing Layer:
- Multi-ply Cord Reinforcement
- Flange Standard:
- PN10 / 16, ANSI Class 150 LB
- Applicable Media:
- Sewage, mineral pulp, acid-base media, dry powder, etc.
- Control Options:
- Hand wheel drive, pneumatic, electric
- Working Principle:
- Operating the hand wheel squeezes the internal rubber hose, controlling the opening and closing functions.
Key Specifications / Features
The Electric Heavy Duty Pinch Valve, available in carbon steel, stainless steel, cast iron, or aluminum alloy body options, is designed for robust performance in demanding applications. It offers a size range of 1-40 inches (DN25-DN1000) and pressure ratings from PN6 to PN16. The valve features a durable rubber sleeve, ensuring reliable shutoff and flow control in various industrial systems. Its electric operation provides precise control, making it ideal for handling abrasive or viscous fluids with ease.
Pinch Valves are ideal for shut-off or control applications involving abrasive or corrosive slurries, powders, or granular substances. Our advanced flow control solutions are designed to meet the most demanding customer specifications, improving process efficiency and extending service intervals.
The Pinch Valve design consists of three main components: the sleeve, the body, and the actuator. The sleeve is the only part that comes into contact with the process medium, ensuring reliable isolation. All three components are customizable to suit a wide range of process conditions.
Pinch Valves offer 100% tight shut-off, even when solids accumulate on the sleeve wall. Upon compression, any crystallized particles flake off the sleeve surface and are flushed downstream, ensuring optimal performance.
Pinch Valve Advantages
» No pressure loss, blockage, leakage, or impact resistance, ensuring efficient and reliable operation.
» Ideal for handling liquid-solid and gas-solid two-phase media containing particles.
» The cord fabric-reinforced rubber hose offers high wear resistance, corrosion resistance, tear resistance, and fatigue resistance, ensuring long-term durability in challenging environments.
