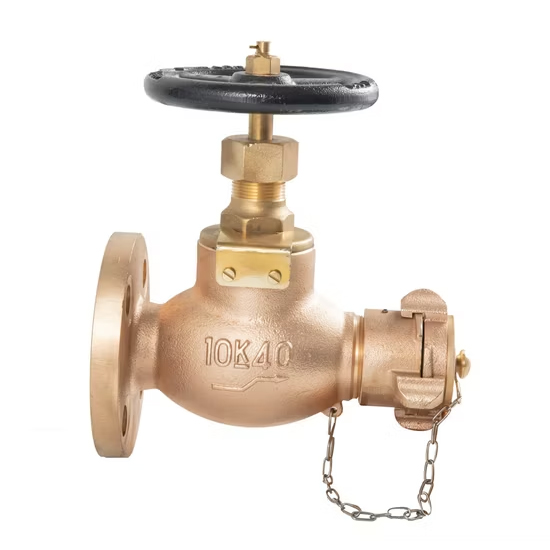

JIS F7334 Hose Globe Valve, Bronze BC6, 40A, 10K, 1-1/2 Inch
- Product Name:
- JIS F7334 Hose Globe Valve
- Design Standard:
- JIS F7334
- Body Material:
- Cast Bronze JIS BC6
- Size:
- JIS 40A, 1-1/2 Inch
- Pressure:
- JIS 10K
- End Connection:
- FF Flanged
- Operation:
- Handwheel
Key Specifications / Features
The JIS F7334 Hose Globe Valve is crafted from durable cast bronze JIS BC6, designed for reliable fluid control in various industrial applications. With a size of 1-1/2 inches (JIS 40A) and a pressure rating of JIS 10K, it ensures dependable performance under moderate pressure conditions. The valve features FF flanged ends for secure and easy installation, while the handwheel provides manual operation for precise flow regulation.
Marine valves are essential components used to control the pressure, flow rate, and direction of fluids within ship pipelines, ensuring they meet the specific environmental conditions of marine vessels. These valves serve as control devices in fluid pipelines, performing key functions such as opening or closing the flow of medium, altering the flow direction, regulating pressure and flow rate, and safeguarding the proper operation of pipeline equipment.

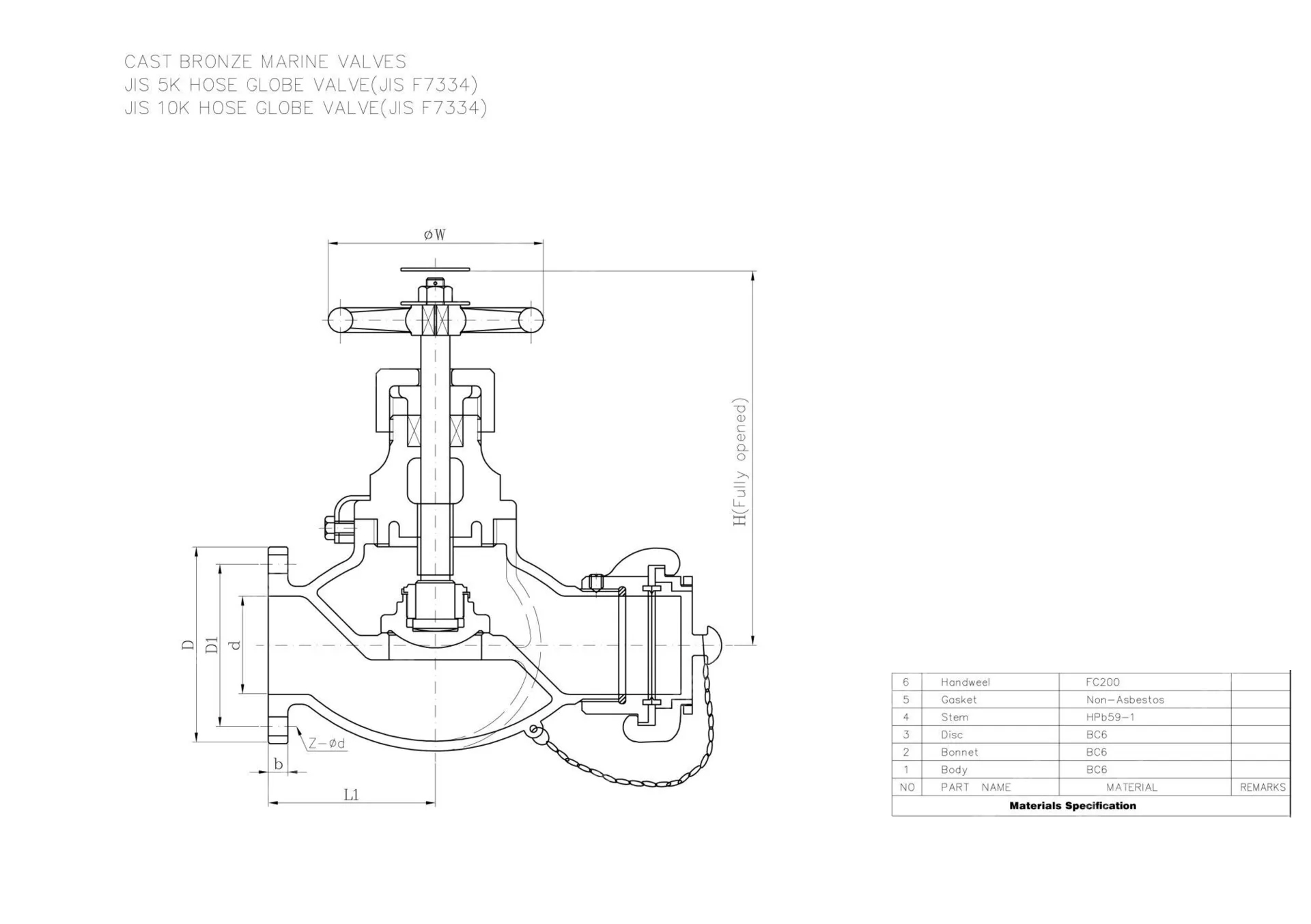

Materials of Main Parts
| NO | Part name | Material |
| 1 | Body | BC6 |
| 2 | Bonnet | BC6 |
| 3 | Disc | BC6 |
| 4 | Stem | C3771BD |
| 5 | Gasket | Non-asbestos |
| 6 | Handweel | FC200 |
