Cast Bronze Angle Globe Valve, JIS F7334, BC6, 40A, 10K, FF
- Product Name:
- Cast Bronze Hose Angle Globe Valve
- Design Standard:
- JIS F7334
- Body Material:
- Cast Bronze JIS BC6
- Size:
- JIS 40A, 1-1/2 Inch
- Pressure:
- JIS 10K
- End Connection:
- FF Flanged
- Operation:
- Handwheel
- Temperature Range:
- -29°C to 345°C
- Medium:
- Sea Water, Fresh Water, Oil, etc
Key Specifications / Features
The Cast Bronze Angle Globe Valve Supplier offers a robust hose globe valve designed for demanding applications. This valve meets the JIS F7334 standard and is made from high-quality JIS BC6 cast bronze, ensuring durability and corrosion resistance. It features a 1-1/2 inch size, a pressure rating of 10K, and FF flanged ends for secure connections. Operated by a handwheel, it is ideal for use with sea water, providing reliable performance and ease of operation.
Marine valves are specifically designed to control the pressure, flow rate, and direction of fluids in ship pipelines, ensuring they meet the stringent environmental conditions required on vessels. These valves are essential control devices for fluid pipelines, with their primary functions being to connect or cut off the flow of the pipeline medium, change the flow direction of the medium, adjust the pressure and flow rate of the medium, and protect the normal operation of pipeline equipment.
Materials of Main Parts
| NO | Part Name | Material |
| 1 | Body | BC6 |
| 2 | Bonnet | BC6 |
| 3 | Disc | BC6 |
| 4 | Stem | C3771BD |
| 5 | Gasket | Non-asbestos |
| 6 | Handweel | FC200 |

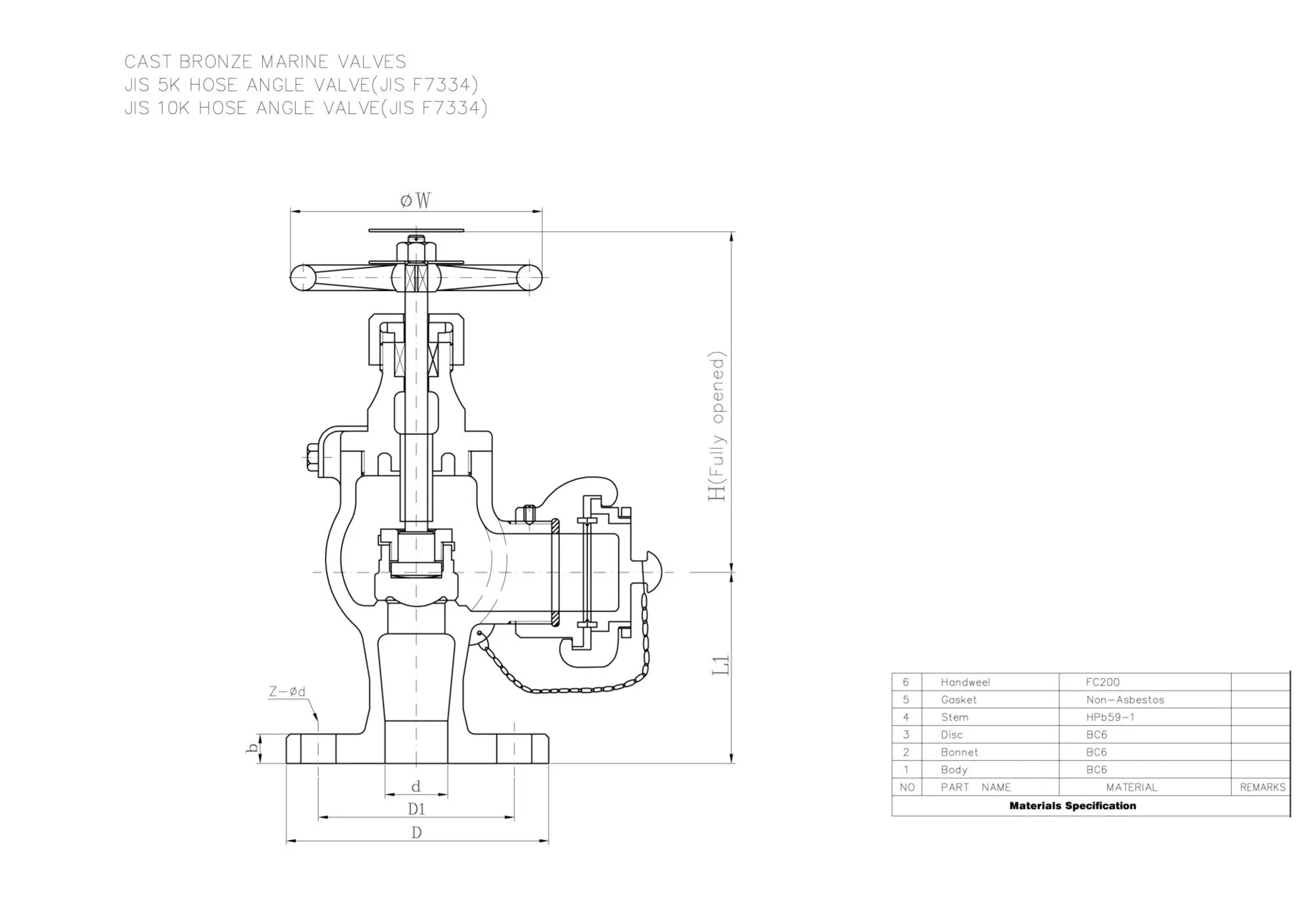

Technical Drawing
