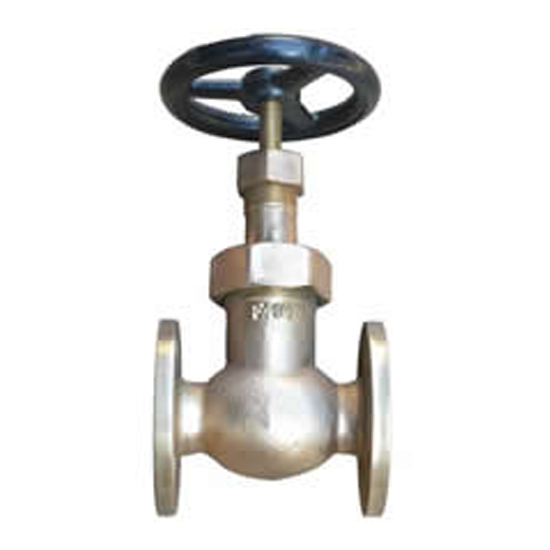

JIS 7346 Globe Valve, Cast Bronze BC6, 25A, 5K, 1 Inch, FF
- Product Name:
- JIS 7346 Globe Valve
- Design Standard:
- JIS 7346
- Body Material:
- Cast Bronze JIS BC6
- Size:
- JIS 25A (1 Inch)
- Pressure:
- JIS 5K
- End Connection:
- FF Flanged
- Operation:
- Handwheel
Key Specifications / Features
The JIS 7346 Globe Valve features a durable cast bronze JIS BC6 body, offering excellent corrosion resistance for marine and industrial applications. Designed to JIS standards, it has a 1-inch (JIS 25A) size, JIS 5K pressure rating, and flat-face (FF) flanged ends for secure installation. Handwheel-operated, this valve ensures precise flow control and reliable performance in low-pressure systems.
Marine valves are essential components used to control the pressure, flow rate, and direction of fluids within ship pipelines, designed to withstand the challenging environmental conditions at sea. These valves serve as control devices for fluid pipelines, with their primary functions being to start or stop the flow of medium, change the direction of flow, regulate pressure and flow rate, and protect the safe and efficient operation of pipeline systems and equipment.

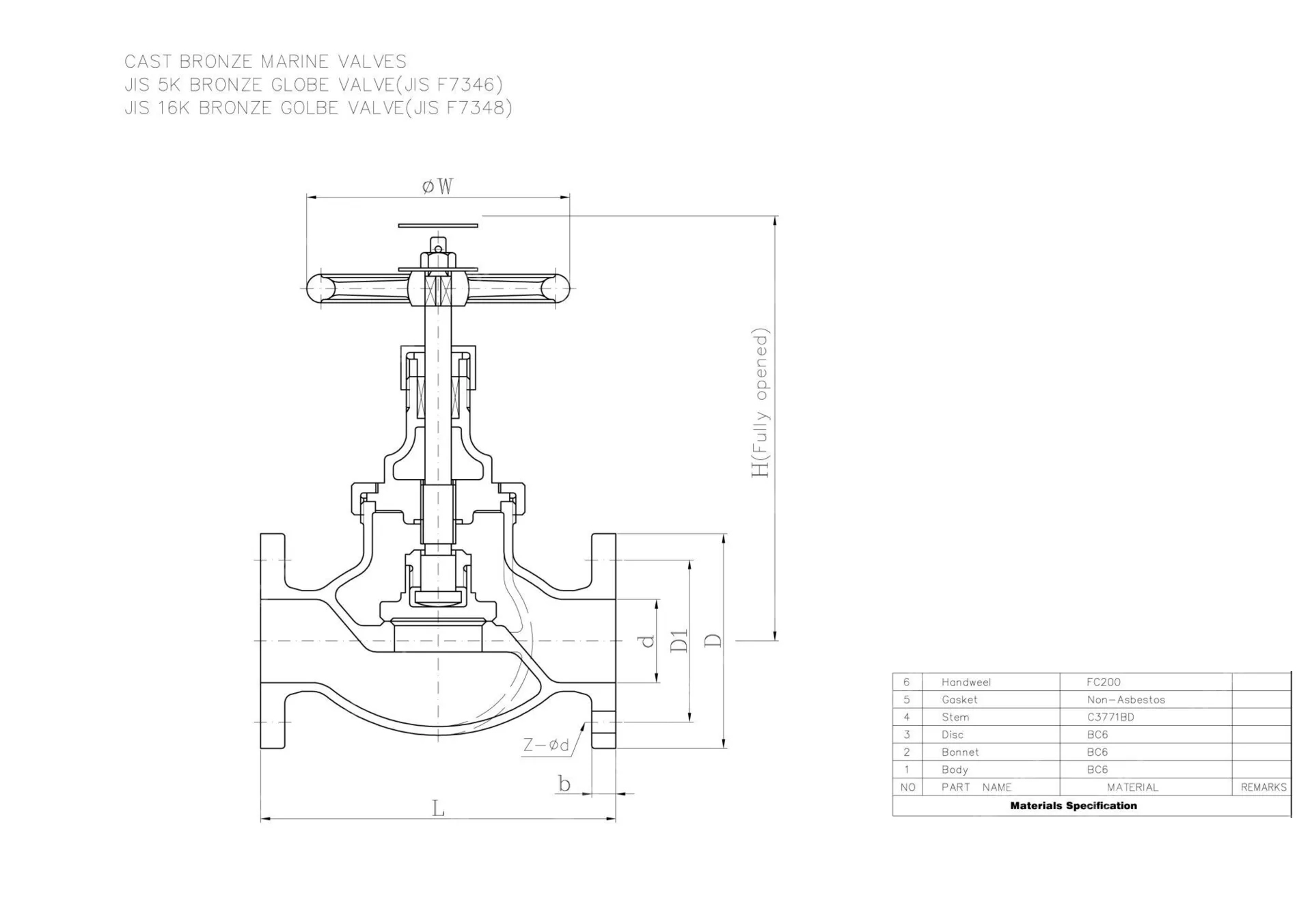

Materials of Main Parts
| NO | Part name | Material |
| 1 | Body | BC6 |
| 2 | Bonnet | BC6 |
| 3 | Disc | BC6 |
| 4 | Stem | C3771BD |
| 5 | Gasket | Non-asbestos |
| 6 | Handweel | FC200 |
