High-temperature Steam Control Valve, ASTM A105, DN40, PN64

Key Specifications / Features

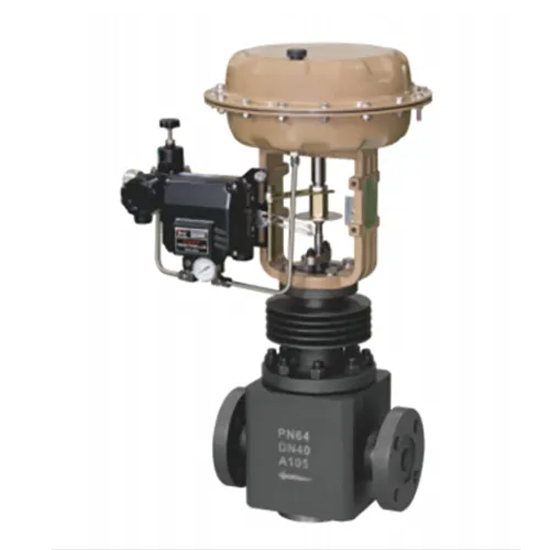

The High-temperature Steam Control Valve is engineered for precise regulation of steam flow in high-temperature environments. Made from ASTM A105 carbon steel, this 1-1/2 inch (DN40) valve operates at PN64 and Class 400 LB pressure ratings, ensuring reliability under extreme conditions. It features flanged ends for secure installation and is equipped with a multi-spring diaphragm pneumatic actuator for smooth, automated control.

The Pneumatic High-Temperature Steam Control Valve is a top-entry, globe-type valve with flange or welding connections and a cage-type seat. The valve body features a streamlined S-shaped channel, offering low-pressure loss, high capacity, a wide regulating range, and high accuracy in flow characteristics. The plug is designed with a guiding area for enhanced vibration resistance. Equipped with a multi-spring diaphragm actuator, the valve has a compact structure and delivers high output force. It is suitable for controlling various fluids, including steam, water, and gases.

Technical Specifications

» Body Type: Straight-through casting globe type
» Spool Type: Non-balanced single-seat plug type
» Body Material: ASTM A216 WCB, A105, A217 WC6, WC9, A182 F11, F22
» Nominal Size: DN20–DN300, 3/4–12 Inch
» Nominal Pressure: PN16–PN100, Class 150–600 LB
» Connection:
   Flange: FF, RF, MF, RTJ
   Welding: SW, BW
» Flange Dimension: According to IEC 60534
» Bonnet Type:
   I: Standard type (-20℃ to 230℃)
   II: Radiator type (-45℃ to >230℃)
» Packing: V-type PTFE packing, flexible graphite packing, etc.
» Gasket: Metal graphite packing
» Actuator: Pneumatic, multi-spring diaphragm actuator, piston type actuator
» Medium: Water, steam, gas, etc.
» Temperature: -40℃ to 450℃
» Position Type: 4-20mA signal control
» Voltage: Depends on the accessory
» Feature: Optional top handwheel
