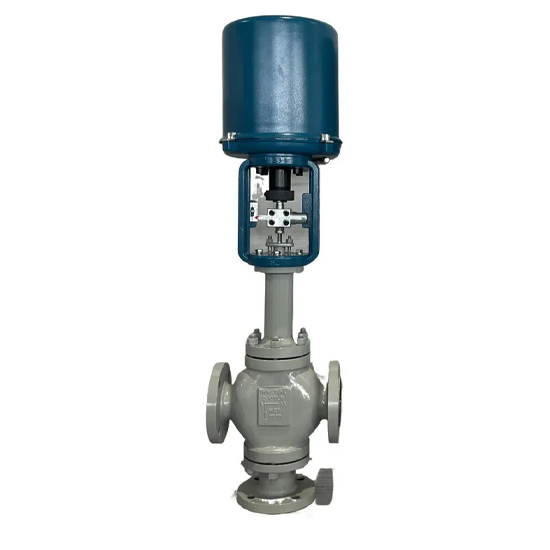

Electric Three Way Control Valve, ASTM A216 WCB, 2 IN, CL150

Key Specifications / Features

The Three Way Control Valve is designed for precise flow regulation in industrial systems. Featuring a carbon steel ASTM A216 WCB body, this 2-inch (DN50) valve operates at Class 150 LB and PN20 pressure ratings. It comes with RF flanged ends for secure installation and features an electric actuator for smooth and automated operation. Ideal for applications requiring precise control of fluid flow in multiple directions, this valve offers durability, efficiency, and reliability.

The Electric Actuator Three-Way Control Valve integrates a DKZ type series of straight travel electric actuator with a through-sleeve control valve. It operates on single-phase AC 220V or DC 380V power supply and accepts 0~10mA or 4~20mA DC signals to automatically control valve opening. This allows for continuous regulation of pipeline fluid pressure, flow, level, and other parameters. The ZAZM Sleeve electric control valve is known for its sensitivity, ease of use, and rapid energy and signal transmission. It is widely used in industrial automatic control systems in power plants, metallurgy, chemical, textile, and other industries.

Technical Parameters

» Body Type: Straight-through casting globe type
» Spool Type: Balanced sleeve plug type
» Body Material: ASTM A216 WCB, A352 LCB, A351 CF8, CF3, CF8M, CF3M, A217 WC6, WC9
» Nominal Size: DN25-DN400, NPS 1-16 Inch
» Nominal Pressure: PN16-PN100, Class 150-600 LB
» Connection:
   Flange: FF, RF, MF, RTJ
   Welding: SW, BW
» Flange Dimension: According to IEC 60534
» Control Valve Bonnet Type:
» Standard Type: -20°C to 230°C
» Radiator Type: -45°C to higher than 230°C
» Low-Temperature Extended Type: -196°C to -45°C
» Bellow Seal Type
» Warm Insulation Jacket Type
» Packing: V-type PTFE packing, flexible graphite packing, etc.
» Gasket: Metal graphite packing
» Actuator: Electric actuator
» Medium: Water, oil, steam, gas
» Temperature: -29 to 538 °C
» Position Type: Input signal increase, valve close or opposite
» Voltage: AC 220V, AC 380V, other voltages customized
» Other: Explosion-proof type is optional
