Safety Valve with Radiator, API 526, A216 WCB, DN100, PN16

Key Specifications / Features

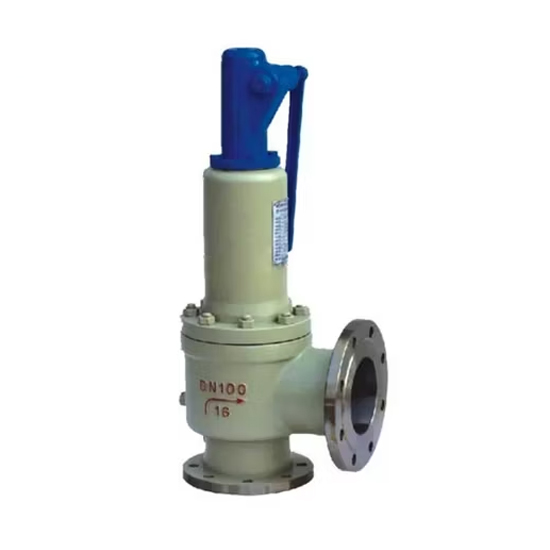

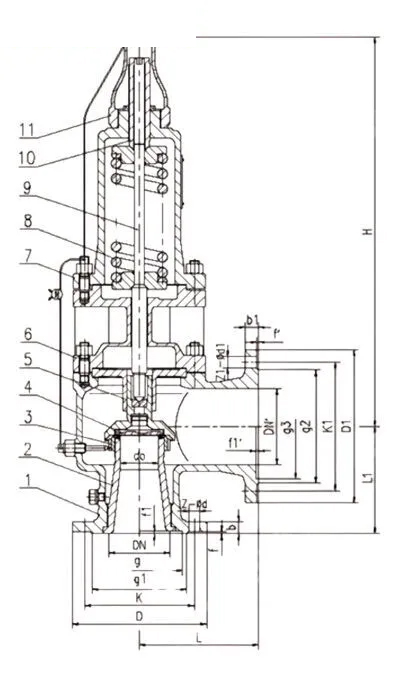

The Full Open Spring Safety Valve is designed per API 526, featuring a durable ASTM A216 WCB carbon steel body for high-temperature applications. Sized at DN100 (4 inches) with a PN16 (Class 150 LB) pressure rating, it ensures reliable overpressure protection. Equipped with a radiator for enhanced heat dissipation, this valve is ideal for steam, gas, and high-temperature fluid systems, providing precise and efficient pressure relief.

The Full Lift Spring Safety Valve is designed for use in systems where discharge is relatively simple. It operates effectively in systems with atmospheric discharge, constant pressure, or systems where pressure can build up to a maximum of 10% above the set pressure. In cases of constant back pressure, the valve should be set based on the differential pressure. The valve disc features two types of sealing surfaces: flat and conical. The discharge area is calculated based on the cylindrical or conical surface formed between the valve disc and the valve seat. This valve is ideal for applications with small discharge capacities, high back pressure, and stable system pressure.

Technical Specifications

» Normal Size Range: 3/4-8 Inch (DN20-DN200)
» Normal Pressure Rating: Class 150-600 LB (PN10-PN100)
» Design and Manufacture: GB/T 12243-1989, API RP 520, 521, API 526, API 527
» Face to Face (End to End): GB/T 14087, JB/T 6441, JB/T 2203, JB/T 9624, JB/T 53170
» Flanged Connection: ASME B16.5, DIN 2543 to 2545, EN 12627
» Test and Inspection: API 598, DIN 3230, MSS SP-117
» Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex or Other Specials
» Ends Connections: Flanged (FF, RF, RTJ) to international standards
» Working Medium: Gas, liquid, and steam

Product Features

» Lighter and More Compact Construction: Continuous design improvements have resulted in smaller, lighter valves, supporting industry trends focused on space and weight savings.
» Interchangeable Parts: The valves can be easily modified between types (gas, liquid, conventional, and bellows) by simply changing a few components.
» Simplified Maintenance and Service: Re-engineered to reduce the number of parts, making maintenance easier and more cost-effective.
» Material Selection: A wide range of materials is available, including non-ferrous metals for low-temperature and oxygen service, as well as exotic alloys for chemical and process industries.
