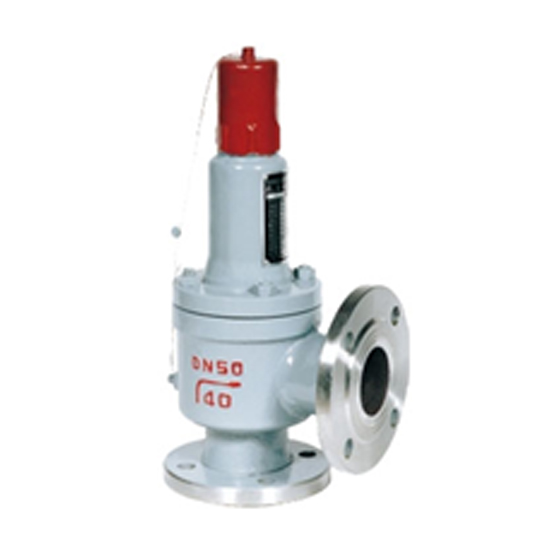

LNG Safety Valve, API 526, A216 WCB, DN50, PN40, 2 Inch, RF

Key Specifications / Features

The Liquefied Natural Gas (LNG) Safety Valve, manufactured per API 526, features a durable ASTM A216 WCB carbon steel body for high-pressure protection. Sized at DN50 (2 inches) and rated for PN40/Class 300 LB, it is equipped with RF flanged ends for secure and leak-proof installation. Engineered for LNG applications, it ensures reliable overpressure protection and system safety.

The Liquefied Natural Gas (LNG) safety valves are designed for use in liquid-phase outlet pipes, with an operational temperature range of -40°C to 80°C. These valves are equipped with a unique mechanism that automatically returns liquefied gas to the gas tank when the inlet and outlet differential pressure exceeds 0.5 MPa, ensuring safety and efficient operation in LNG systems.

Technical Specifications

» Normal Size Range: 1/2-16 Inch (DN15-DN400)
» Normal Pressure Rating: Class 150 LB (PN16-PN40)
» Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex, or Other Specials
» Design and Manufacture: GB/T 12243-1989, API RP 520, 521, API 526, API 527
» Face to Face (End to End): GB/T 14087, JB/T 6441, JB/T 2203, JB/T 9624, JB/T 53170
» Flanged Connection: ASME B16.5, DIN 2543 to 2545, EN 12627
» Test and Inspection: API 598, DIN 3230, MSS SP-117
» End Connections: Flanged (FF, RF, RTJ) to international standards
» Working Medium: gas, liquid and steam

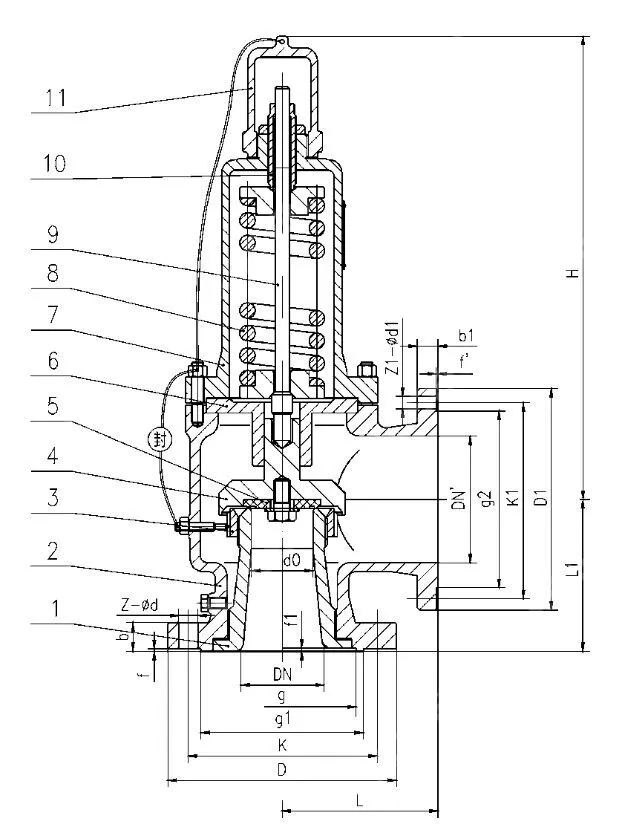

Main Parts and Materials
