GS-C25 Y Strainer, DIN 3352, DN50, PN16, RF

Key Specifications / Features

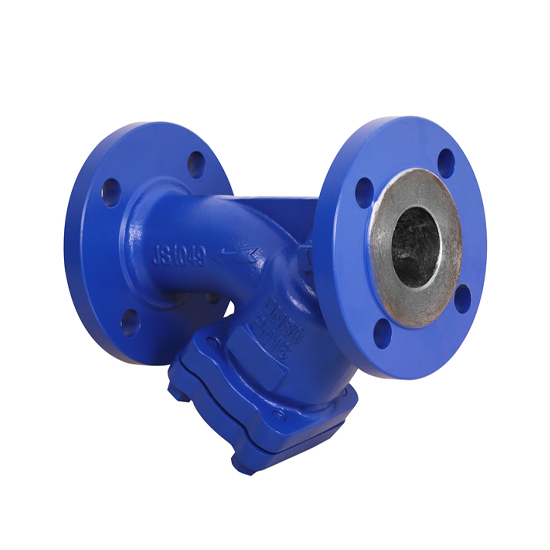

The GS-C25 Y Strainer Supplier from China offers high-quality Y strainers designed in accordance with DIN 3352 standards. These strainers feature a robust cast carbon steel body, ensuring durability and reliability. With a size of 2 inches (DN50) and a pressure rating of PN16 (Pressure Class 150 LB), they are suitable for a variety of industrial applications. The RF flanged ends provide secure and easy connections to piping systems.

As an indispensable high-efficiency filtration equipment in purification equipment engineering, Y-type strainers have played a great role in the treatment of domestic wastewater and industrial wastewater. With various advantages in design and application, they are now highly favored. Y-type strainers have effectively treated a large amount of domestic and industrial wastewater in various industries, enabling valuable water resources to be effectively reused and saving a significant amount of water resources. The advantages of Y-type filters in operation include full automation, maintenance-free, large filtration area, high filter efficiency, long service life, stainless steel material, optional filtration accuracy, and complete specifications. Compared with other filtration equipment, it is one of the most effective equipment in engineering, and the water quality after being treated with a Y-type strainer not only meets the national discharge standards but also achieves the purpose of reuse and recycling.

Technical Specification

» Normal Size Range: DN15-DN600
» Normal Pressure Rating: PN16-PN40
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtering Accuracy: 18-30 mesh for water filter, 10-100 mesh for air filter, 100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» Ends Connections: RF, BW
» Medium: Steam, High-temperature Steam, Gas, Oil

Standards Compliance

» Design and Manufacture: DIN 3352, DIN 3840
» Face to Face (end to end): EN 558-1
» Flanged Connection: EN 1092-B1
» Test and Inspection: EN 12266
» Butt Welded End: EN 12627, DIN 3239

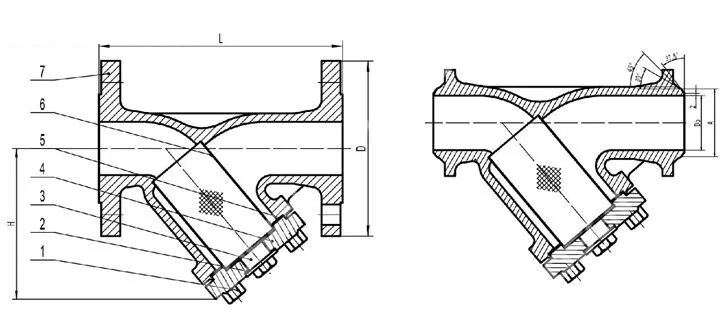

Material for Main Parts
