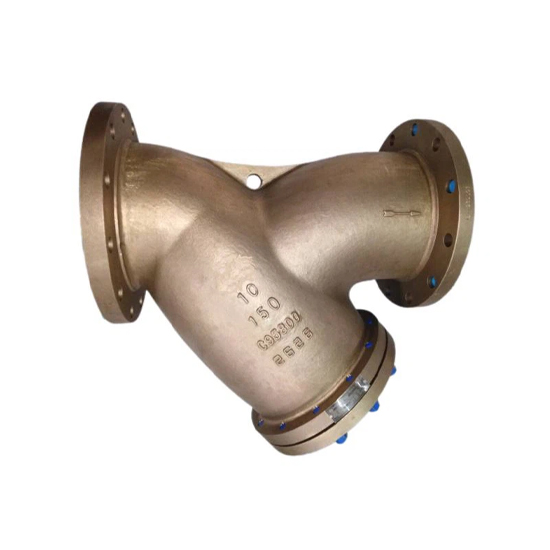

Aluminum Bronze Y Strainer, ASME B16.34, C95800, 10 IN, CL150
- Product Name:
- Aluminum Bronze Y Type Strainers for Sea Water
- Design Standard:
- ASME B16.34
- Body Material:
- ASTM B148 C95800
- Size:
- 10 Inch
- Pressure:
- Class 150 LB
- End Connection:
- RF
- Screen Material:
- Duplex Stainless Steel
Key Specifications / Features
The Aluminum Bronze Y Strainer, manufactured in accordance with ASME B16.34 and ASTM B148 C95800 standards, features a durable aluminum bronze body and a duplex stainless steel screen. Designed for 6-inch (DN150) applications, this strainer supports Class 300 LB and PN50 pressure ratings, with RF (Raised Face) ends for easy installation. Ideal for filtration in demanding industrial environments, it ensures reliable performance, corrosion resistance, and efficient fluid flow management.
The Y-type strainer is an essential high-efficiency filtration device widely used in purification engineering for both domestic and industrial wastewater treatment. Its advanced design and versatile applications make it a preferred choice across industries. By effectively filtering large volumes of wastewater, Y-type strainers help optimize water reuse, significantly conserving valuable resources.
Key advantages of Y-type strainers include full automation, maintenance-free operation, a large filtration area, high efficiency, long service life, and durable stainless steel construction. With customizable filtration accuracy and a wide range of specifications, they stand out as one of the most effective filtration solutions. Compared to other filtration equipment, Y-type strainers not only ensure treated water meets national discharge standards but also support sustainable reuse.
Technical Specification
» Normal Size Range: 1/2-24 Inch (DN15-DN600)
» Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
» Material: ASTM B148 C95800,C95400, B62 C83600
» Filtering Accuracy:
18-30 mesh for water filter
10-100 mesh for air filter
100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» End Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil
Standards Compliance
» Design and Manufacture: ANSI B16.34, API 600, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

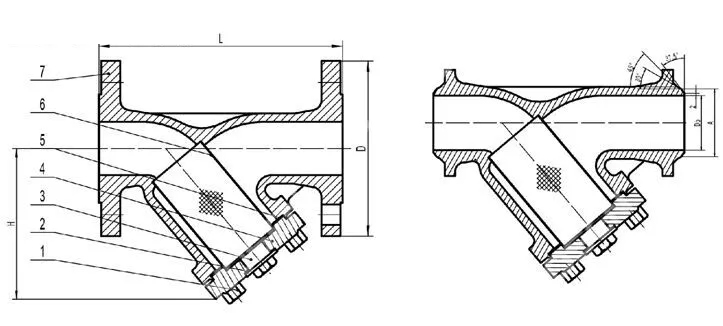

Material for Main Parts
| No | Name of Parts | Aluminum Bronze | Aluminum Bronze |
| 1 | Bolt | A193 B8M | A193 B8M |
| 2 | Gasket | Copper Alloy | Copper Alloy |
| 3 | Drain plug | Stainless steel | Stainless steel |
| 4 | Bonnet | ASTM B148 C95800 | ASTM B148 C95400 |
| 5 | Gasket | Graphite + SS | Graphite + SS |
| 6 | Screen | Duplex stainless steel | Duplex stainless steel |
| 7 | Body | ASTM B148 C95800 | ASTM B148 C95400 |
