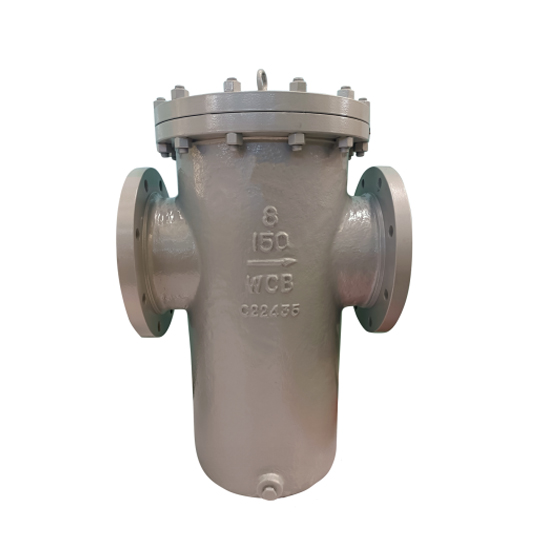

ANSI B16.34 Basket Strainer, ASTM A216 WCB, 8 IN, CL150, RF

Key Specifications / Features

The China ANSI B16.34 Basket Strainer is a high-quality filtration solution designed for industrial applications. It features a carbon steel ASTM A216 WCB body, ensuring durability and reliability. The strainer has a 6-inch (DN150) size and is rated for a pressure class of 150 LB (PN20). It is equipped with RF (Raised Face) flanged ends, facilitating easy installation and maintenance. This basket strainer is ideal for removing impurities from fluid systems, providing efficient filtration and protecting downstream equipment.

The basket strainer primarily comprises a connecting pipe, main pipe, filter basket, flange, flange cover, and fasteners. As fluid flows into the filter basket via the main pipe, solid impurities are trapped within the basket, while the filtered fluid exits through the outlet. For cleaning, simply remove the screw plug at the base of the main pipe to drain the fluid, then detach the flange cover and extract the filter basket. After cleaning, reassemble the components. This design ensures extremely convenient maintenance.

Technical Specification

» Product Model: SD16C
» Normal Size Range: 1-1/2 – 48 Inch (DN40-DN600)
» Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
» Material: 25# Steel, ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Ends Connections: RF, BW

Standards Compliance

» Design and Manufacture: ANSI B16.34, API 600, API 6D
» Face-to-Face (End-to-End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

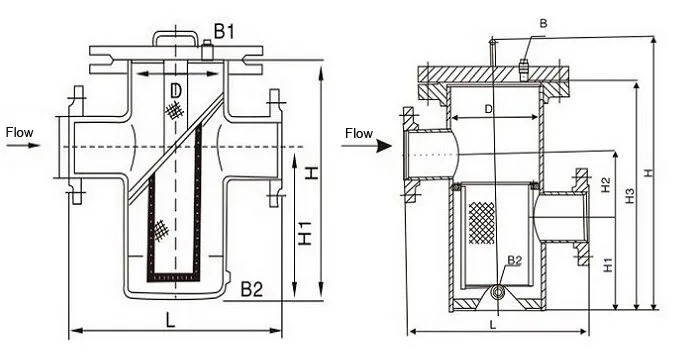

Structural Diagram

Main Dimensions
