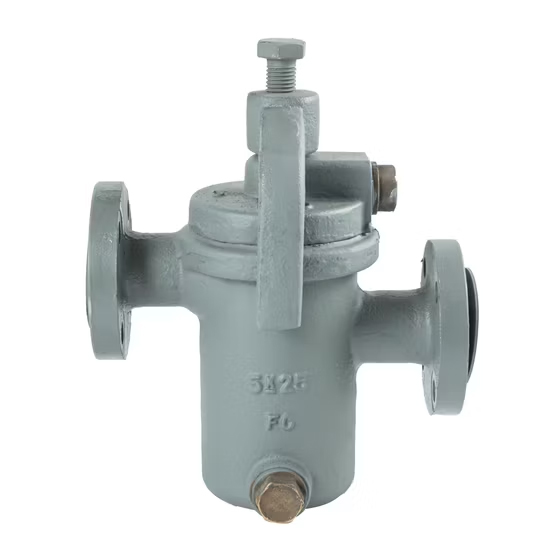

Simplex Oil Strainer, JIS F7209, FC200, 25A, 5K, 1 Inch, FF
- Product Name:
- Simplex Oil Strainer
- Design Standard:
- JIS F7209
- Body Material:
- FC200
- Size:
- JIS 25A, 1 Inch
- Pressure:
- JIS 5K
- End Connection:
- FF Flanged
Key Specifications / Features
The Simplex Oil Strainer is designed to efficiently filter and protect fluid systems. Built in accordance with JIS F7209 standards, it features a durable cast iron FC200 body for long-lasting performance. This 1-inch (JIS 25A) strainer operates at a pressure rating of JIS 5K, providing reliable filtration under standard operating conditions. Equipped with FF flanged ends, it ensures secure installation and a tight seal.
Product Range
Port Size: JIS 25A–40A, 1 Inch – 1-1/2 Inch
Pressure: JIS 5K, JIS 10K
Body Material: Ductile iron, carbon steel, stainless steel
Connection: FF Flange
Function: Designed to filter out impurities from the media
Medium: Sea water, fresh water, oil, etc.
Temperature: -29°C to 150°C
Marine valves are essential pieces of equipment used on ships to control the pressure, flow rate, and flow direction of fluids within the ship's pipelines. These valves are specifically designed to meet the unique environmental conditions and operational requirements of marine applications. They play a crucial role in ensuring the safe and efficient operation of various systems on board, including propulsion, cooling, fuel management, and more.

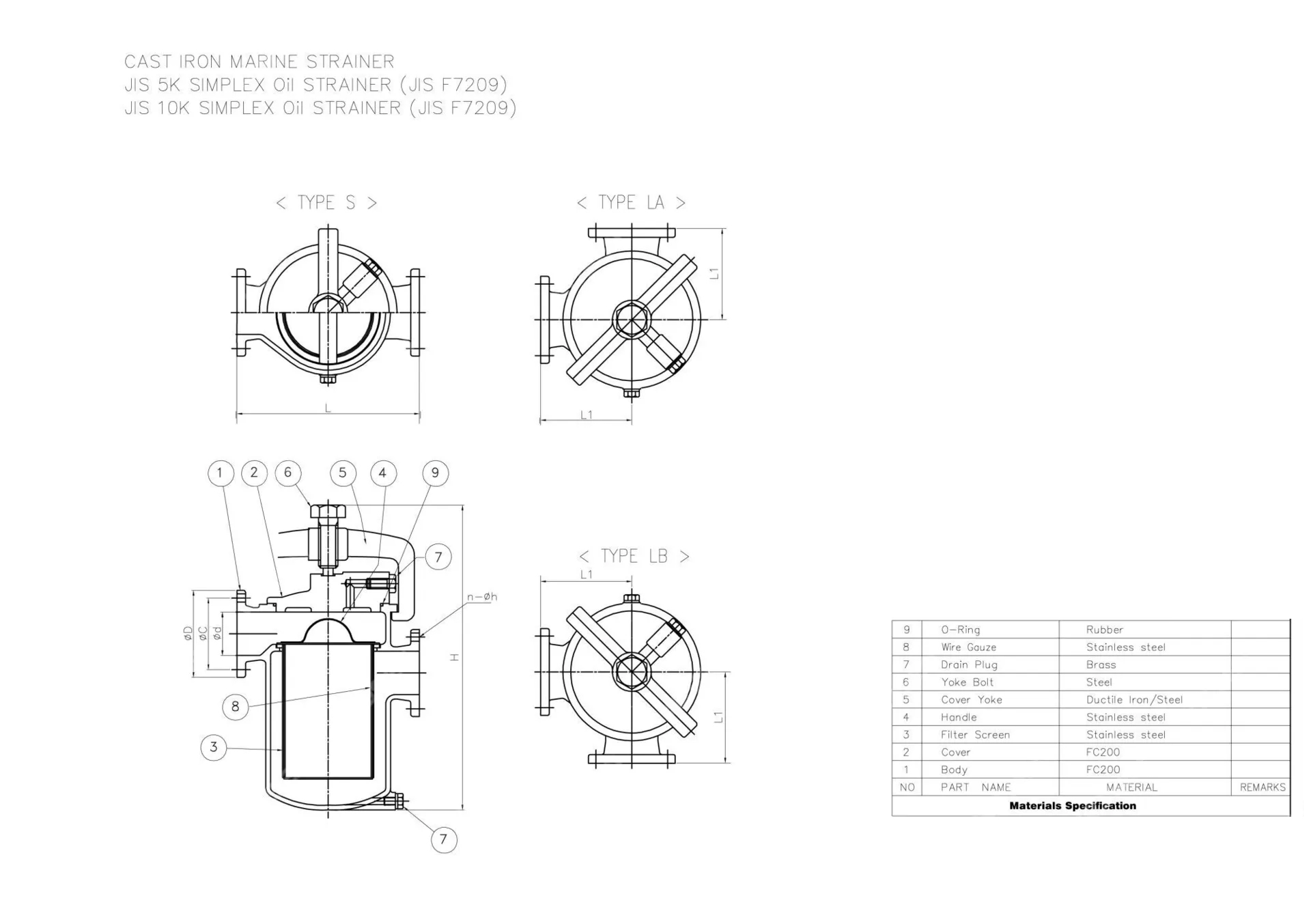

Materials of Main Parts
| NO | Part name | Material |
| 1 | Body | FC200 |
| 2 | Cover | FC200 |
| 3 | Filter Screen | Stainless steel |
| 4 | Handle | Stainless steel |
| 5 | Cover Yoke | Ductile Iron/Steel |
| 6 | Yoke Bolt | Steel |
| 7 | Drain Plug | Brass |
| 8 | Wire Gauze | Stainless steel |
| 9 | O-Ring | Rubber |
