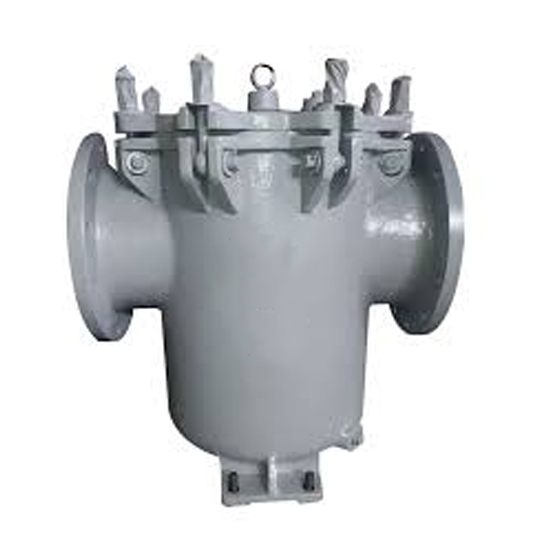

Cast Iron Water Strainer, JIS F7121, FC200, 200A, 10K, 8 IN
- Product Name:
- Cast Iron Water Strainer
- Design Standard:
- JIS F7121
- Body Material:
- Cast Iron JIS FC200
- Size:
- JIS 200A, 8 Inch
- Pressure:
- JIS 10K
- End Connection:
- FF Flange
Key Specifications / Features
The Cast Iron Water Strainer, designed per JIS F7121, features a body material made from JIS FC200 for durability and corrosion resistance, ideal for marine applications. Rated JIS 200A (8 inches) and JIS 10K, it comes with FF flanged ends for easy installation and secure connections. This strainer provides efficient filtration and reliable performance in water systems aboard ships and other marine vessels.
Marine valves like water strainer are essential equipment used to control the pressure, flow rate, and direction of fluids in ship pipelines, designed to withstand the specific environmental conditions encountered at sea. A valve functions as a control device within fluid pipelines, with its primary roles being to either connect or shut off the flow of medium, change the flow direction, regulate the pressure and flow rate, and ensure the safe operation of pipeline equipment.
Product Range
» Port Size: 125A to 400A (5-16 Inch)
» Pressure Rating: JIS 5K, JIS 10K
» Structure: Filters out impurities from the media
» Temperature Range: -29°C to 150°C
» Body Material: Ductile Iron, Carbon Steel, Stainless Steel
» Connection Type: FF Flange
» Medium: Seawater, freshwater, oil, etc.

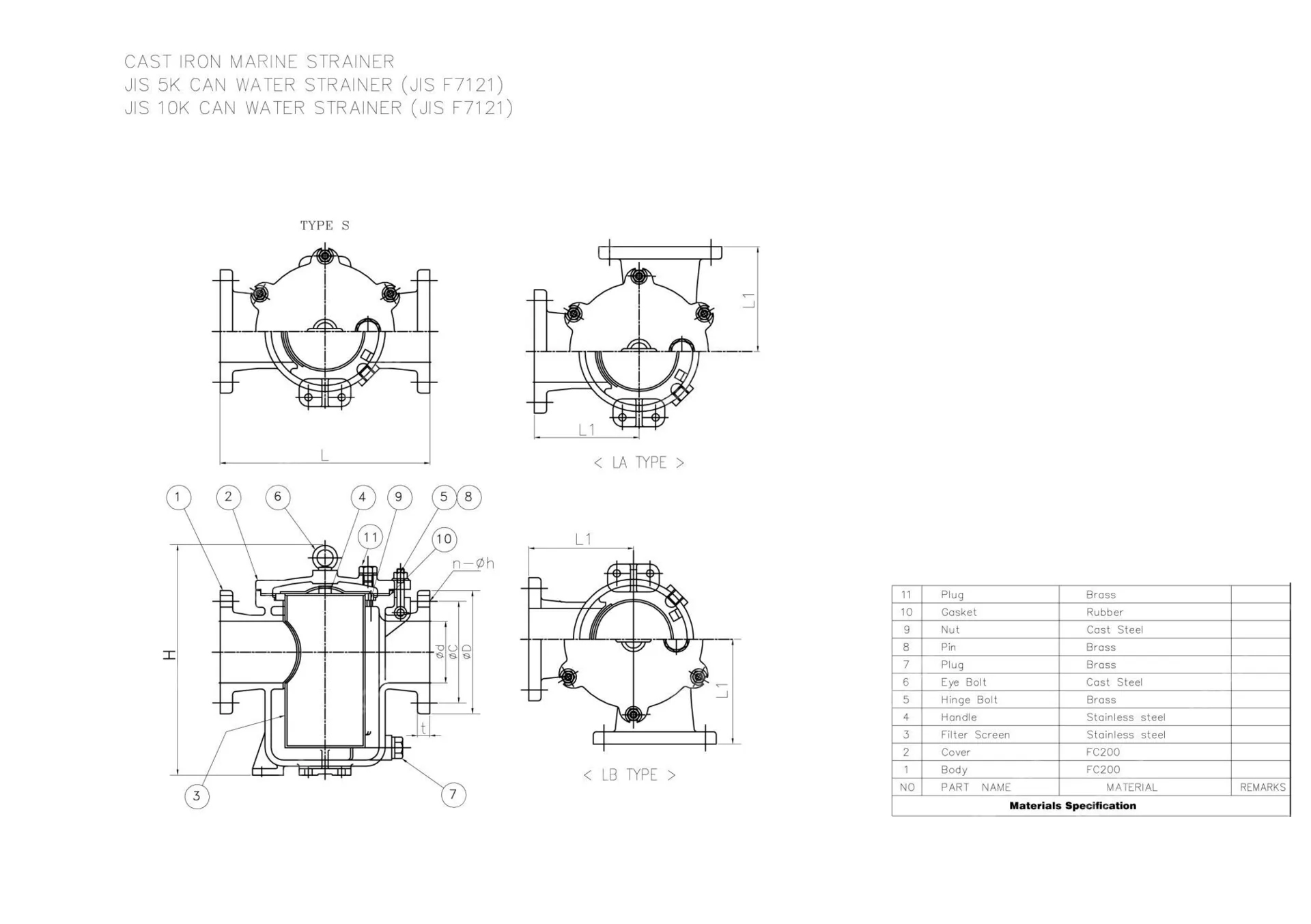

Materials of Main Parts
| NO | Part name | Material |
| 1 | Body | FC200 |
| 2 | Cover | FC200 |
| 3 | Filter Screen | Stainless steel |
| 4 | Handle | Stainless steel |
| 5 | Hinge Bolt | Brass |
| 6 | Eye Bolt | Cast Steel |
| 7 | Plug | Brass |
| 8 | Pin | Brass |
| 9 | Nut | Cast Steel |
| 10 | Gasket | Rubber |
| 11 | Plug | Brass |
