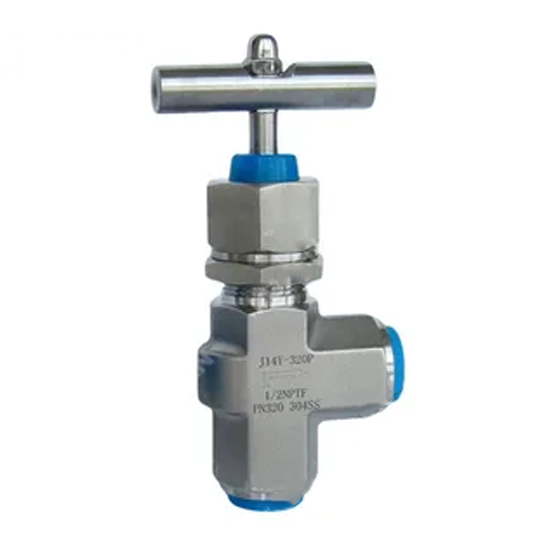

SS 304 Angle Needle Valve, 1/2 Inch, DN15, PN320, Male NPT

Key Specifications / Features

The SS 304 Angle Needle Valve features a stainless steel body for corrosion resistance and durability. With a 1/2-inch (DN15) size and a pressure rating of PN320 (Class 2500 LB), it is designed for high-pressure applications. The valve comes with male NPT ends, ensuring a secure and leak-proof connection, making it ideal for precise flow control in demanding industrial environments.

The Angle Type External Thread Needle Valve is known for its long service life, high temperature resistance, and vertical valve tip movement, which eliminates rotation. It features a sleek, compact design with a lightweight feel for easy operation. Made from high-temperature and high-pressure stainless steel, this needle valve is a crucial component in instrument measurement pipeline systems. It offers advantages such as easy installation, tight connections, excellent fire prevention, explosion-proof properties, high pressure resistance, and strong sealing performance. Ideal for use in power plants, refineries, chemical plants, and instrument measurement pipelines, it serves as a flow switch for high-pressure gas and liquid systems. The valve's reliable quality can be tailored to meet specific user requirements with non-standard designs and special material options.

Technical Specifications

Type: Angle
Usage: Cut-off
Nominal Diameter: DN6-DN100 mm, 1/8-4 Inch
Nominal Pressure: 1.0 - 42.0 MPa, PN10-PN420
Main Materials: SS 304, SS 316
Connection Method: External Threaded/Male Threaded
Working Temperature: -54°C to 316°C (-65°F to 600°F)

Product Performance

» Low Torque Design: Ensures the valve is lightweight and easy to operate.
» Traceable Materials: All raw materials used in the main components are traceable for quality assurance.
» Leak-proof Sealing: PTFE or flexible graphite sealing pressure device ensures no leakage during valve stem operation.
» Compact Structure: The valve has a compact design, attractive appearance, and flexible application, offering tight connections and reliable sealing performance.
» Easy Installation & Disassembly: Facilitates quick installation and disassembly with secure connections, making it beneficial for fire prevention, explosion-proof applications, high pressure resistance, and excellent sealing performance.
