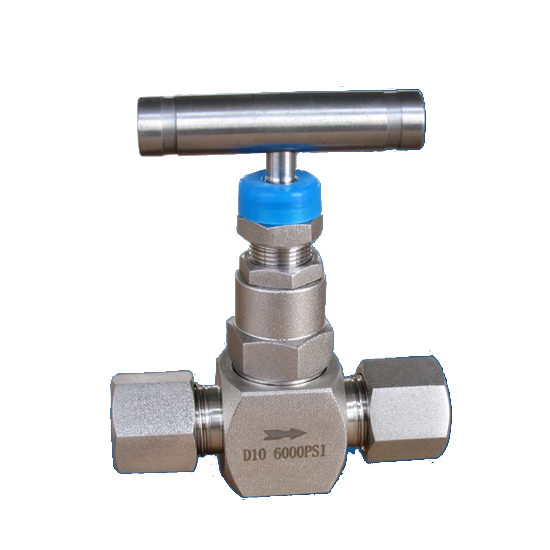

Sleeve Type Needle Valve, Stainless Steel SS 304, 6000 PSI

Key Specifications / Features

The Sleeve Type Needle Valve Supplier from China offers high-quality needle valves designed for precise flow control. These through-type valves feature a stainless steel SS 304 body, ensuring durability and corrosion resistance. Available in customized sizes, they are engineered to handle pressures up to 6000 PSI, making them ideal for high-pressure applications. Specifically designed for cut-off purposes, these needle valves provide reliable and accurate control.

Product Range

Product Model: J03P
Nominal Diameter: DN6 to DN100 (mm)
Nominal Pressure: PN1.0 to 42.0 MPa
Main Materials: Stainless Steel SS 304, SS 316
Connection Method: Sleeve Type
Working Temperature: -65°F to 600°F (-54°C to 316°C)

The sleeve-type stainless steel needle valve is equipped with a hard cobalt chromium tungsten alloy steel ball valve disc, offering exceptional hardness and the ability to perform three-dimensional rotation during medium erosion. This feature enhances the valve disc's resistance to harsh working conditions and effectively addresses internal leakage issues on the sealing surface.
The valve body and joint (valve cover) are sealed using a slanted hard-to-hard sealing mechanism, ensuring reliable and long-lasting sealing performance. This design minimizes the risk of valve leakage, making the valve highly effective in preventing unwanted fluid loss and maintaining consistent performance in demanding applications.
