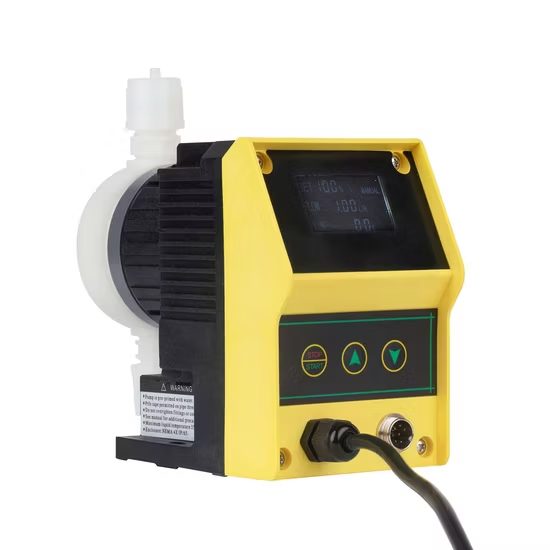

Solenoid Diaphragm Metering Pump, 1-15 LPH, Plastic, PVC/PVDF
- Product Name:
- Signal Input Solenoid Diaphragm Metering Pump
- Medium:
- Chemical Liquid
- Diaphragm Material:
- PTFE
- Voltage:
- 220V
- Power:
- Electric
- Capacity Range:
- 1-15 LPH
- Pump Materail:
- Plastic
- Pump Head Material:
- PVC, PVDF
- Valve Body Type:
- Direct Double-Seat
- Rated Current:
- 1-4A
- Performance:
- Corrosion
- Connection Type:
- PE hose for all models
- Voltage Supply:
- 220V 50/60Hz or 110V 50/60Hz
Key Specifications / Features
The Solenoid Diaphragm Metering Pump Manufacturer offers pumps with a capacity range of 1-15 LPH, designed with a plastic body and PVC or PVDF pump head. Equipped with a PTFE diaphragm, these pumps are ideal for precise chemical liquid dosing, ensuring reliable performance in chemical processing and other related applications.
Solenoid Diaphragm Metering Pump Description
The JLM Series Solenoid Diaphragm Metering Pump is a reliable and efficient digital dosing solution for a wide range of chemical applications. The pump operates through a solenoid shaft driven by a magnetic field, with the diaphragm in the dosing head alternately sucking and discharging fluid. The double-ball check valves prevent backflow during operation. The dosing accuracy can be finely adjusted by controlling both stroke length and stroke speed. With a capacity range of 1.0 l/h to 15 l/h and back pressure from 1 to 15 bars, this pump is suitable for dosing a variety of low-viscosity chemicals. The JLM pump is an economical solution for precise metering and is widely used across various dosing applications.
Solenoid Diaphragm Metering Pump Applications
» Potable Water Treatment: Dosing of disinfectants
» Cooling Circuits: Dosing of corrosion inhibitors and biocides
» Waste Water Treatment: Dosing of flocculants
» Paper Industry: Dosing of additives
» Plastics Production: Dosing of additives
Solenoid Diaphragm Metering Pump Technical Parameter
| Model | 50/60Hz | Diaphragm Dia. (mm) |
Power | Connection Size | ||||
| Flow (lph) |
Pressure (Bar) |
Flow (gph) |
Pressure (Psi) |
SPM (max) |
||||
| JLM0110 | 1.0 | 10 | 0.3 | 145 | 120 | 34 | 28W | 5*8mm |
| JLM0408 | 3.8 | 7.6 | 1.0 | 110 | 180 | |||
| JLM0505 | 5.0 | 5.0 | 1.3 | 73 | 41 | |||
| JLM0804 | 7.6 | 3.5 | 2.0 | 51 | ||||
| JLM1002 | 10 | 2.0 | 2.6 | 29 | 52 | |||
| JLM1202 | 12 | 1.5 | 3.2 | 22 | ||||
| JLM1501 | 15 | 1.0 | 4.0 | 15 | ||||
