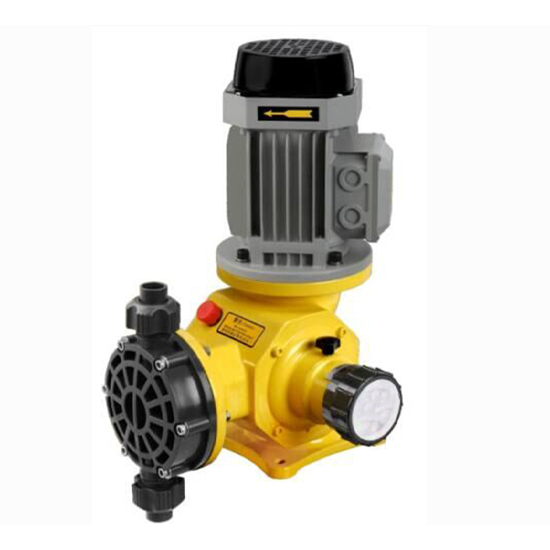

Mechanical Diaphragm Metering Pump, 50 Hz, 25-500 L/H, 1.5 m
- Product Name:
- Mechanical Diaphragm Dosing Metering Pump
- Pressure Range:
- 5-10 bar
- Power:
- 0.25 kW, 0.37 kW, 0.55 kW
- Capacity Range:
- 25 L/h to 500 L/h (at 50 Hz)
- Max Processing Temperature:
- Up to 70°C (158°F)
- Stroke Adjustment:
- 0 - 100%
- Suction Lift:
- 1.5 m
- Accuracy:
- ±2% of set point
- Measuring Pump Head:
- PVC, SUS304, SUS316, Teflon
- Measuring Valve:
- PVC, SUS 304, SUS 316, Teflon
- Valve Materials:
- Silicon Dioxide, SUS304, SUS316, Ceramics
- Sealing Materials:
- Teflon, PVC
- Motor:
- Standard Two-phase, Three-phase, or Explosion-proof Motor
- Protection Level:
- IP54
- Environmental Temperature:
- -30°C to 90°C
Key Specifications / Features
The Mechanical Diaphragm Metering Pump features a capacity range from 25 L/H to 500 L/H at 50 Hz, offering accurate and reliable performance. Operating at pressures between 5 and 10 bar, this pump features a suction lift of up to 1.5 meters. Constructed from durable materials such as PVC, SUS 304, SUS 316, and Teflon, it offers excellent chemical resistance and longevity.
The Mechanical Diaphragm Metering Pump is a heavy-duty, high-performance pump designed for chemical dosing. It features a double-diaphragm design for sensitive liquid dosing and a reinforced plate to protect the diaphragm, increasing its lifespan. The stroke length and speed are adjustable to alter capacity. Suitable for dosing chemicals like aluminum sulfate, polymers, alkalis, sodium hydroxide, acids, anti-scaling agents, and chlorine. Widely used in waste treatment, industrial chemical processes, agriculture, and more.
