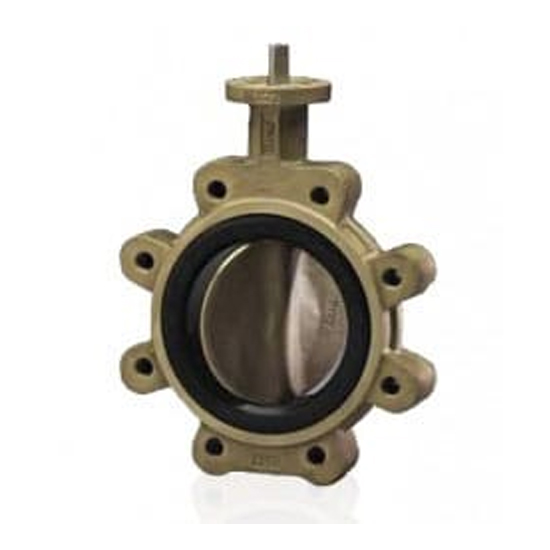

Double Offset Butterfly Valve, API 609, C95800, 12 IN, CL150

Key Specifications / Features

The High-Performance Butterfly Valve features a double offset design for enhanced sealing and durability. Made from bronze (ASTM B148 C95800), it meets API 609 Category B standards and is rated DN300, 12 inches, PN16, Class 150 LB. With lug ends, it offers reliable performance and efficient flow control in various applications.

The Double Offset High Performance Butterfly Valve in bronze is a versatile and durable valve designed for efficient flow control across various industrial sectors. It features a bi-directional design and a blow-out proof shaft, ensuring reliability even under extreme conditions. The valve can be customized with different seat options, such as soft seat, metal seat, and fire-safe seat, to meet specific operational needs. With its durable construction and flexible features, this valve is widely used across industries for applications requiring high performance and adaptability.

Technical Specification

» Size Range:
  Class 150 LB: 2-48 Inch
  Class 300 LB: 2-48 Inch
  Class 600 LB: 2-24 Inch
» Pressure Rating: Class 150-600 LB, PN10-PN40, 10K-20K
» Design Type: Double Offset
» Standard: API 609 Category B
» Body Material: Aluminium Bronze (ASTM B148 C95800, C83600, B584 C84400, ASTM B62)
» Disc Material: Aluminium Bronze (ASTM B148 C95800, C83600, B584 C84400, ASTM B62)
» Shaft Material: MONEL K500
» Shutoff Rating: Class VI, Bubble Tight
» Certifications: API 607, PED
» Seat Design: Unique Valve Seat Design
» Optional Seat Materials: RTFE
» Operation Options: Handle, Worm Gear, Pneumatic, Electric
» Temperature Range:
  Soft Seat: -29°C to 260°C
  Metal Seat: -51°C to 550°C
  Metal Seat (Cryogenic): -196°C to 121°C
  Fire Safe Seat: -51°C to 550°C
» End Connections: Wafer, Lug, RF Flange
» Medium: Sea Water, etc.

Application Scope

» Chemical/Petro-Chemical Liquified Gas/Refrigeration Heavy Industry
» Power/Co-Generation Plants Steel and Iron Works Commercial
» Pulp and Paper Mills
» Oil Refineries and Oil Field Ship Building
» Hydrocarbon Processing Gas Piping
» Local Area Energy Supply Industrial
» Construction
» Marine
