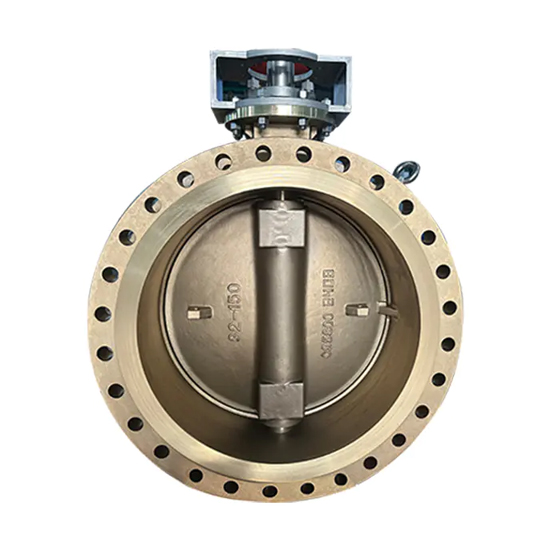

Aluminum Bronze Butterfly Valve, C95800, 32 Inch, CL150, Lug

Key Specifications / Features

The Aluminum Bronze Butterfly Valve, supplied with a bi-directional, double offset design, meets API 609 Category B standards for reliable fluid control. Featuring an ASTM A148 C95800 aluminum bronze body, it offers excellent corrosion resistance in harsh environments. With a 36-inch (DN900) size, Class 150 LB, and PN20 pressure rating, this valve is designed for heavy-duty applications. The lug-type connection ensures easy installation and removal.

The double offset high performance butterfly valve in bronze is a versatile and robust valve suitable for a wide range of applications. It features a bi-directional design and a blow-out proof shaft, ensuring reliable performance even under extreme conditions. The valve can be customized to accommodate different seat options, including soft seat, metal seat, and fire-safe seat, based on specific customer requirements. This flexibility allows for enhanced functionality and compatibility with diverse industries and environments.
With its durable construction and customizable features, the flanged double offset high performance butterfly valve in bronze offers a reliable solution for efficient flow control. It is widely used across numerous industrial sectors.

Technical Specification

» Size Range:
  Class 150 LB: 2-48 Inch
  Class 300 LB: 2-48 Inch
  Class 600 LB: 2-24 Inch
» Pressure Rating: Class 150-600 LB, PN10-PN40, 10K-20K
» Design Type: Double Offset
» Standard: API 609 Category B
» Body Material: Aluminium Bronze (ASTM B148 C95800, C83600, B584 C84400, ASTM B62)
» Disc Material: Aluminium Bronze (ASTM B148 C95800, C83600, B584 C84400, ASTM B62)
» Shaft Material: MONEL K500
» Shutoff Rating: Class VI, Bubble Tight
» Certifications: API 607, PED
» Seat Design: Unique Valve Seat Design
» Optional Seat Materials: RTFE
» Operation Options: Handle, Worm Gear, Pneumatic, Electric
» Temperature Range:
  Soft Seat: -29°C to 260°C
  Metal Seat: -51°C to 550°C
  Metal Seat (Cryogenic): -196°C to 121°C
  Fire Safe Seat: -51°C to 550°C
» End Connections: Wafer, Lug, RF Flange
» Medium: Sea Water, etc.

Application Scope

» Chemical/Petro-Chemical Liquified Gas/Refrigeration Heavy Industry
» Power/Co-Generation Plants Steel and Iron Works Commercial
» Pulp and Paper Mills
» Oil Refineries and Oil Field Ship Building
» Hydrocarbon Processing Gas Piping
» Local Area Energy Supply Industrial
» Construction
» Marine
