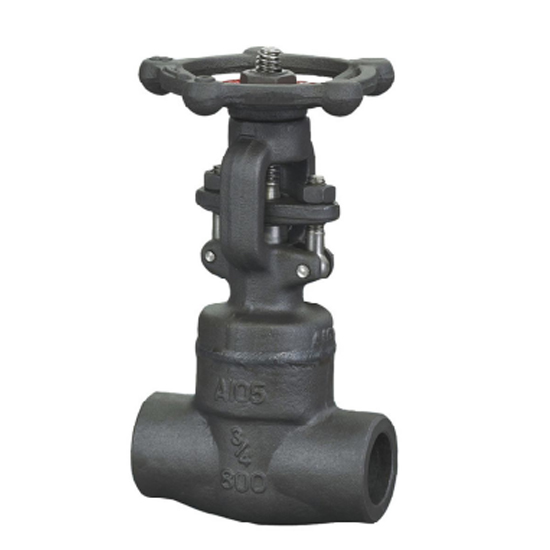

Welded Bonnet Gate Valve, API 602, ASTM A105, 3/4 IN, 800 LB

Key Specifications / Features

The Welded Bonnet Forged Gate Valve, made to ASME B16.34 and API 602 standards, features an ASTM A105 body, 3/4-inch (DN20) size, Class 800 LB, and PN130 pressure rating. It comes with socket welded ends and is manually operated, ensuring reliable performance in high-pressure applications.

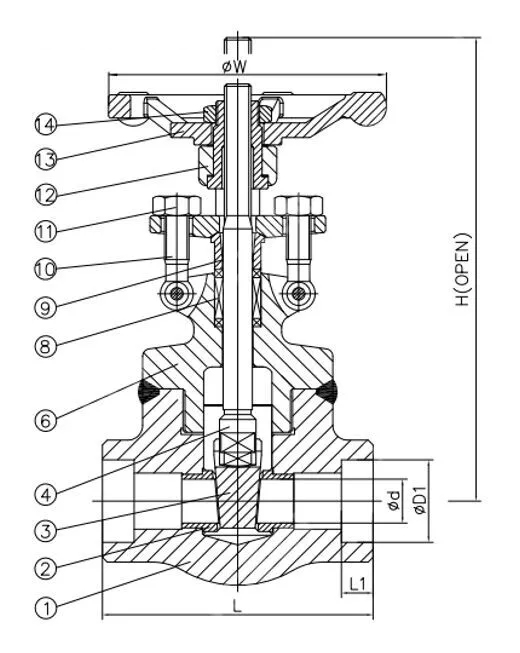

The Forged Steel Gate Valve is designed for high-pressure and high-temperature services, adhering to international standards such as API 602, ASME B16.34, and DIN3202. Its compact yet robust construction ensures reliability even in extreme operating conditions. The valve features a solid CoCr alloy wedge (optional) for low friction and a long service life, along with precompressed packing rings to provide a high-integrity seal. For welded bonnet valves, the bonnet is securely torqued to engineered specifications, and the body-bonnet joint is strength-welded, providing double protection against leakage. A fully guided wedge minimizes wear on the seating surfaces. Additionally, the valve offers options such as double packing, a leak-off connection, live-loading, and packing blowout, facilitating easier maintenance and removal of old packing.

Technical Specifications

» Size Range: 1/2-2 Inch, DN15-DN50 (for forged items)
» Design Pressure: Class 150-2500 LB (PN10 to PN420)
» Materials:
   Body: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel & Other Materials (ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L)
   Trim: 13% Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» Ends Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Temperature Range: -29°C to 595°C
» Medium: Water, Gas, Oil, etc.
» Design & Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test & Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket Weld Ends: ASME B16.11

Forged Steel Gate Valve – Product Features

» OS&Y (Outside Stem and Yoke): Ensures the valve stem is easily visible and accessible for operation.
» Metal-Sealed: Available with various trim options (API Trim #1, #5, #8, #10, etc.) for enhanced sealing performance.
» Optional Locking Device: Provides additional security to prevent unauthorized operation.
» Optional Stem Extension: Allows for extended stem length, ideal for installations requiring greater accessibility.
» Optional Bonnet Configurations: Choose from bolted bonnet, welded bonnet, or pressure-sealed bonnet, depending on the application requirements.
» Direct Mounting to ISO 5211: Facilitates easy actuator mounting directly to the valve.
» Full Bore or Reduced Port: Select between full bore for optimal flow or reduced port for space-saving applications.
