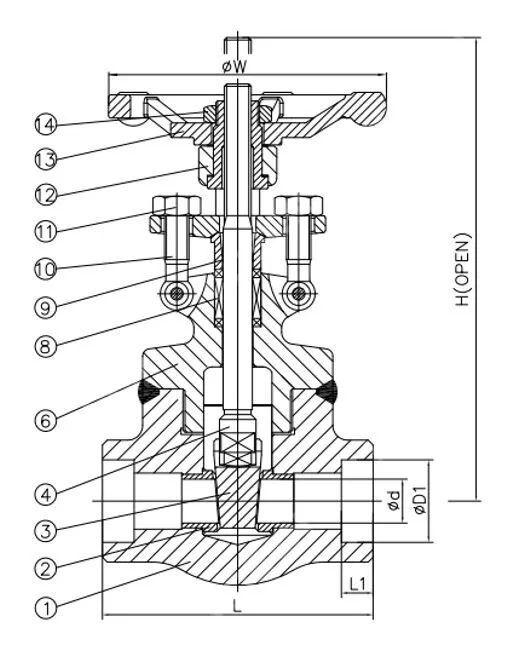

API 602 Gate Valve, ASTM A105N, 3/4 IN, CL800, Welded Bonnet

Key Specifications / Features

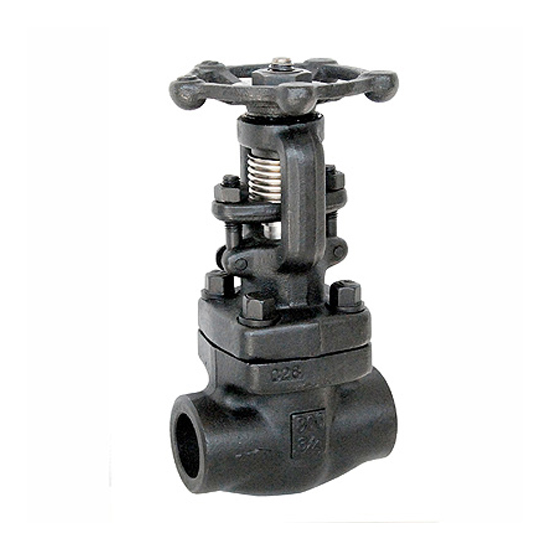

The API 602 Forged Gate Valve is built to ASME B16.34 standards, featuring an ASTM A105N construction. This 1-inch, DN25 valve is rated for Class 800 LB and PN130 pressure, and it includes a fraturing welded bonnet for added reliability and durability. It is metal-seated and employs an OS&Y (Outside Stem & Yoke) design for precise control. With socket weld (SW) ends, this valve ensures secure installation in high-pressure systems.

Forged Steel Gate Valves are designed and manufactured in strict compliance with international standards, including API 602, ASME B16.34, and DIN 3202, or their equivalents. These valves feature a compact yet highly durable design, making them ideal for high-pressure and high-temperature applications. The optional solid CoCr alloy wedge ensures minimal friction and extended service life. The packing rings are pre-compressed to 4000 psi, offering a high-integrity seal. For welded bonnet valves, the bonnet is threaded in and torqued to a precise value, while the body-bonnet joint is strength-welded, providing double protection against leakage (body, bonnet threads, and strength-weld). The fully guided wedge reduces wear on seating surfaces, enhancing the valve's longevity. Additional options include double packing, leak-off connections, live-loading, and a packing blowout feature for easy removal of old packing.

Technical Specifications

» Size Range: NPS 1/2-2 Inch (DN15-DN50)
» Temperature Range: -29°C to 595°C
» Design Pressure: Class 150-2500 LB(PN10-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel(such as ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L)
» Trim Materials: 13% Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other special alloys
» End Connections: SW, FNPT, BW, RF, RTJ, Grooved
» Design and Manufacture: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt-Welded End: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Medium: Water, gas, oil, etc.

Product Features

» OS&Y (Outside Stem and Yoke)
» Metal-Sealed (API Trim #1, #5, #8, #10, etc.)
» Optional Locking Device or Stem Extension
» Optional Bolted Bonnet, Welded Bonnet, or Pressure-Sealed Bonnet
» Optional Direct Mounting to ISO 5211
» Full Bore or Reduced Port
