ASTM A182 F321 Gate Valve, API 602, 1-1/2 Inch, 1600 LB, PSB

Key Specifications / Features

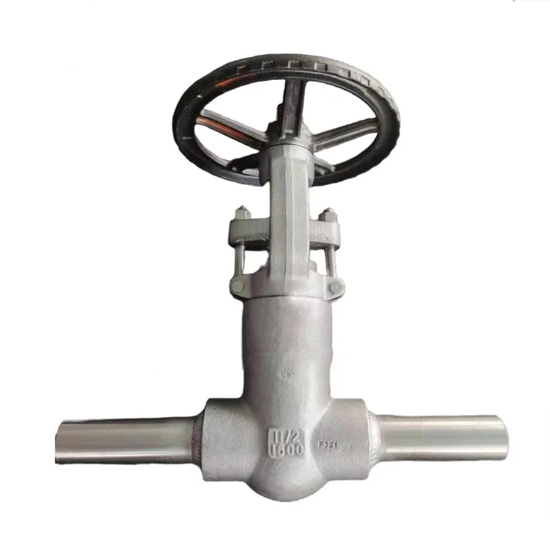

The ASTM A182 F321 Gate Valve Manufacturer produces forged steel gate valves in compliance with API 602 standards. These valves are made from high-quality ASTM A182 F321 material, ensuring durability and reliability in demanding applications. With a 1-1/2 inch (DN40) size and a Class 1500 LB (PN250) pressure rating, they feature an extended body and a pressure seal bonnet design. This combination provides enhanced performance and safety, making them suitable for high-pressure systems.

Pressure Seal Gate Valves are meticulously designed and manufactured to meet International Standards API 602, ASME B16.34, DIN 3202, or their equivalents. These valves feature a compact yet exceptionally robust design, ideal for high-pressure and high-temperature applications.
An optional solid CoCr alloy wedge ensures low friction and extended service life. Packing rings are pre-compressed to 4000 psi, delivering a highly reliable seal. For welded bonnet valves, the bonnet is threaded and tightened to a precise engineered torque value, with the body-bonnet joint strength-welded to provide double protection against leakage.
The fully guided wedge minimizes wear on seating surfaces, enhancing durability. Optional features include double packing, leak-off connections, live-loading, and a packing blowout design for easy removal and replacement of packing materials.

Technical Specification

» Size Range: NPS 1/2-4 Inch (DN15-DN100)
» Design Pressure: Class 900-2500 LB (PN150-PN420)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel
» Trim Materials: 13% Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other special alloys
» End Connections: Butt welding, RTJ Flange
» Design and Manufacture: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt-Welded End: ANSI B16.5

Product Features

» OS&Y (Outside Stem and Yoke) design
» Metal-sealed trims available (API Trim #1, #5, #8, #10, etc.)
» Optional locking device or stem extension
» Available with welded bonnet or pressure-sealed bonnet
» Optional direct mounting to ISO 5211
» Full bore or reduced port options
