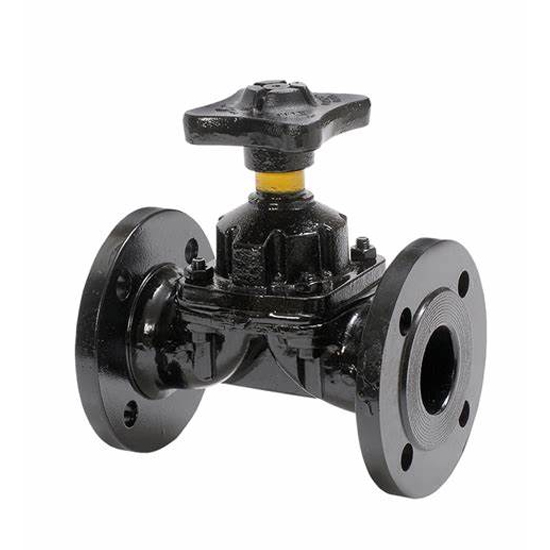

MSS SP-88 Diaphragm Valve, Ductile Iron GGG40, DN32, PN16, RF

Key Specifications / Features

The MSS SP-88 Diaphragm Valve, in compliance with BS 5156, features a Weir type design with a ductile iron GGG40 body and a rubber diaphragm for reliable sealing. With a 1-1/4 inch (DN32) size, Class 150 LB, and PN16 pressure rating, this valve ensures precise flow control in industrial applications.

Weir Type Rubber Lined Diaphragm Valves are designed to significantly increase service life by ensuring the flowing media does not come into contact with the working components. This design also includes a self-draining function to prevent residue buildup, keeping the pipeline cleaner and healthier. The valve body is made from various materials such as cast iron, ductile iron, and cast steel, while the lining materials include options like glass, ETFE, PFA, PVDF, and Halar rubber, which can be specially processed based on specific requirements.

Technical Specifications

» Size: 3/4-16 Inch (DN20-DN400)
» Pressure Rating: PN10, PN16, Class 125 LB, Class 150 LB
» Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89

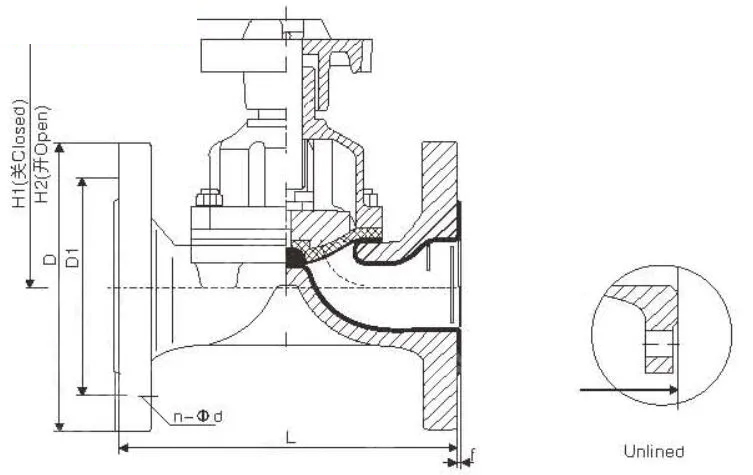

» Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
» Flanged Dimension: BS, DIN PN10 & 16, JIS 10K, ANSI B16.5 Class 125 & 150
» Inspect & Test: BS 5156, MSS SP-82, GB/T 13927
» Face to Face: EN 558-1, BS 5156, DIN 3202 Series F1
» Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Duplex Stainless Steel, ASTM A216 WCB, A351 CF8, CF8M
» Lining: Hard Rubber (Ebonite), Natural, Neoprene, Hypalon, Butyl, EPDM, FEP, PFA
» Diaphragms: Natural, Neoprene, Hypalon, Butyl, EPDM, Silicone, PTFE backed by Neoprene Rubber
» Stem or Spindle: AISI 410, 304, 316
» Operation: Handwheel, Pneumatic, Electric
» Temperature Range: -29°C to 80°C
» Handwheel: Ductile Iron, Aluminum Alloy
