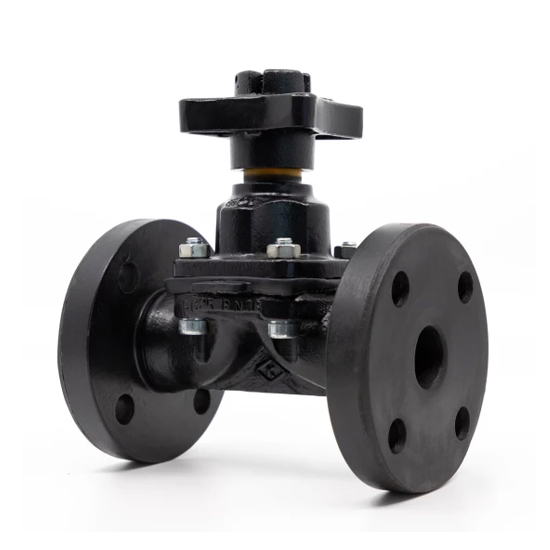

EPDM Lined Diaphragm Valve, BS 5156, GGG40, 1-1/2 IN, 150 LB

Key Specifications / Features

This EPDM Lined Diaphragm Valve features a Weir-type design with a ductile iron GGG40 body and rubber diaphragm. It meets BS 5156 and MSS SP-88 standards, with a 1-1/2 inch (DN40) size, Class 150 LB, and PN16 pressure rating. Ideal for industrial applications, it offers reliable flow control and corrosion resistance.

Weir Type Rubber Lined Diaphragm Valves are built to international standards. These valves are designed so that the flowing media does not touch the internal components, which greatly increases their service life. They also feature a self-draining function, which helps ensure no residue is left behind, keeping the pipeline clean and hygienic.
The valve body comes in different materials, such as cast iron, ductile iron, and cast steel. The linings are made from materials like Glass, ETFE, PFA, PVDF, and Halar rubber, and can be specially processed to meet specific needs. These valves are ideal for various industrial applications, offering both durability and reliability.

Technical Specifications

» Size: 3/4-16 Inch (DN20-DN400)
» Pressure Rating: PN10, PN16, Class 125 LB, Class 150 LB
» Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89

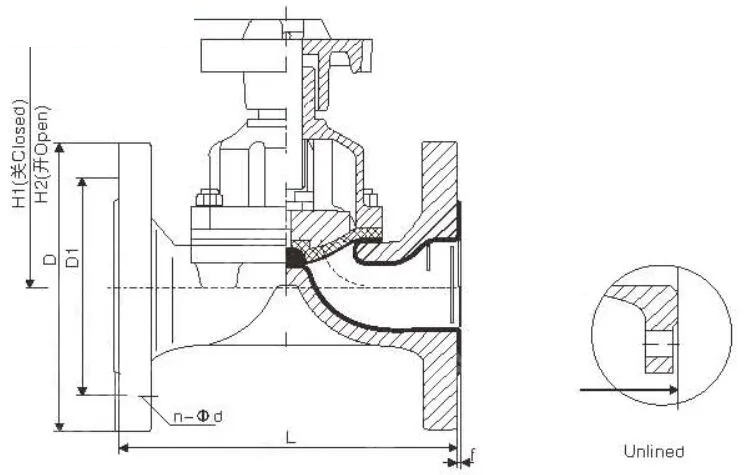

» Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
» Flanged Dimension: BS, DIN PN10 & 16, JIS 10K, ANSI B16.5 Class 125 & 150
» Inspect & Test: BS 5156, MSS SP-82, GB/T 13927
» Face to Face: EN 558-1, BS 5156, DIN 3202 Series F1
» Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Duplex Stainless Steel, ASTM A216 WCB, A351 CF8, CF8M
» Lining: Hard Rubber (Ebonite), Natural, Neoprene, Hypalon, Butyl, EPDM, FEP, PFA
» Diaphragms: Natural, Neoprene, Hypalon, Butyl, EPDM, Silicone, PTFE backed by Neoprene Rubber
» Stem or Spindle: AISI 410, 304, 316
» Operation: Handwheel, Pneumatic, Electric
» Temperature Range: -29°C to 80°C
» Handwheel: Ductile Iron, Aluminum Alloy

Main Material
