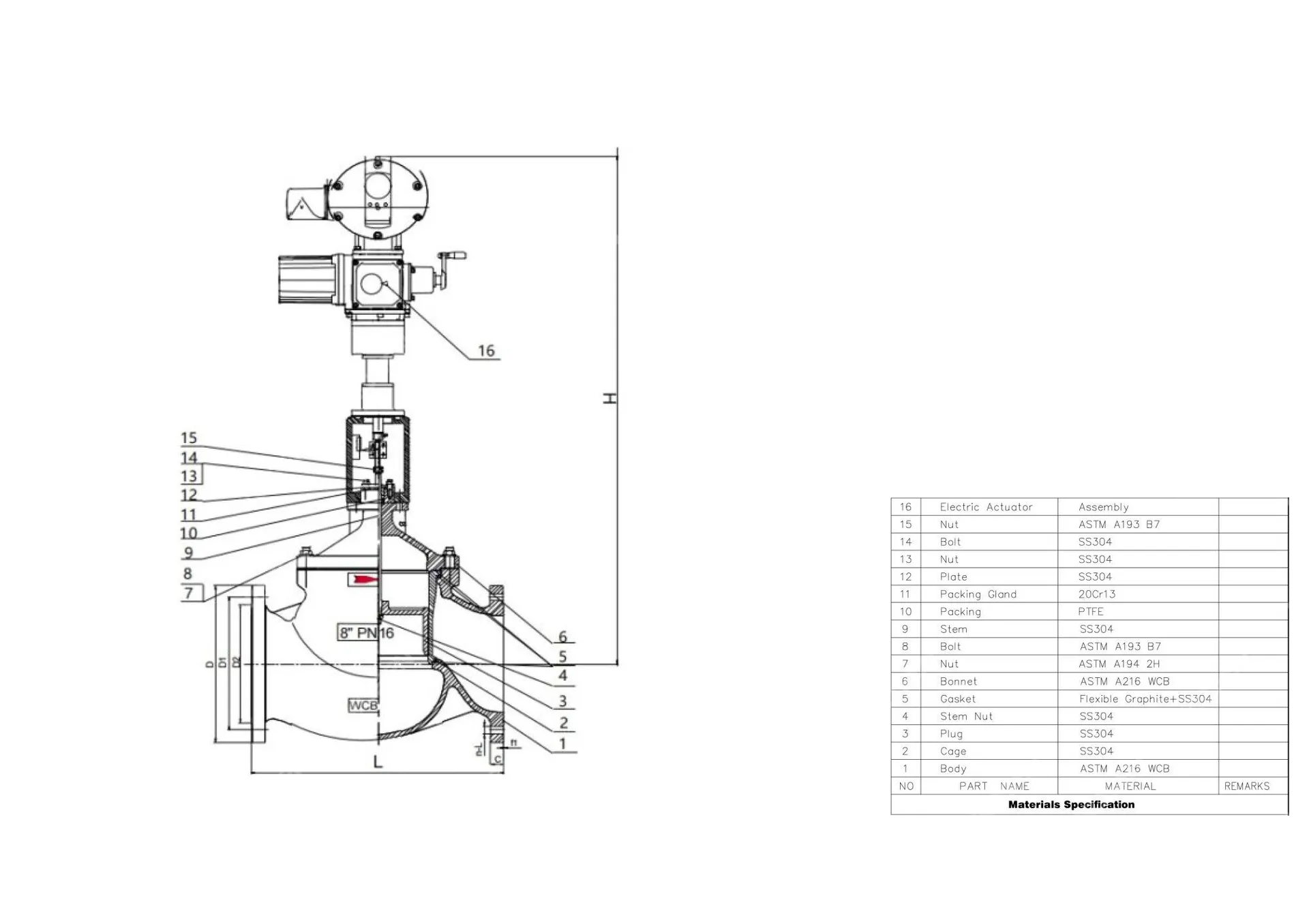

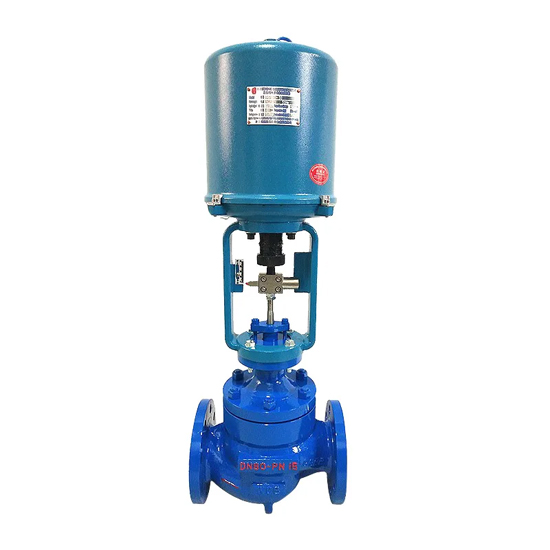

Electric Control Valve, ASTM A216 WCB, DN80, PN16, RF
- Product Name:
- Electric Actuator Control Valve
- Body Material:
- ASTM A216 WCB
- Size:
- DN80
- Pressure:
- PN16
- End Connection:
- RF
- Operation:
- Electric Actuator
- Features:
- Non-balanced, Single Seat
Key Specifications / Features
The Electric Control Valve, manufactured in China, is a non-balanced, single seat type with a carbon steel ASTM A216 WCB body. It features a 4-inch (DN100) size, Class 150 LB, and PN16 pressure rating. Equipped with RF ends, this valve offers precise flow control in industrial applications and is ideal for integration with electric actuators.
Product Range
Medium: Water, Liquid
Temperature: -20℃ to 150℃
Body Material: ASTM A216 WCB, A351 CF8, CF8M, A217 WC6, WC9, etc.
Connection: Flange, Welding
Position Type: Flow to open, Flow to close
Characteristic: Linear, Percentage, Quick open
Voltage: AC 220V, AC 380V, other custom voltages
Other: Soft seat for better seal performance
Electric control valves are used for controlling water pressure, water temperature, and water flow. The electric water control valve features a top guide structure, offering a compact design and an S-shaped streamlined fluid path. This design provides large flow capacity, small pressure differential loss, a wide adjustable range, and precise flow control. The spool guiding part of the electric water control valve has a large guide area, which ensures excellent anti-vibration performance. Additionally, the intelligent control module is built into the electric actuator, eliminating the need for an external positioner.
Technical Specification
| Electric control valve Body type |
straight through casting globe type |
| Spool type | non-balanced single seat plug type |
| Nominal size | DN25-DN300, 1-12 Inch |
| Nominal pressure | PN16-100, Class 150-600 LB |
| Connection (flange) | FF/RF/MF/RTJ |
| Welding | SW、BW |
| Flange dimension | According to to IEC 60534 |
| Electric water control valve Bonnet type |
Ⅰ: standard type (-20℃ to 230℃) Ⅱ: Radiator type: (-45℃ to high than 230℃ occasion) Ⅲ: Low temperature extended type (-196℃ to -45℃) Ⅳ: Bellow seal type Ⅴ: Warm insulation Jacket type |
| Packing | V type PFTE packing, flex. graphite packing, etc |
| Gasket | Metal graphite packing |
| Actuator | Electric: 3810L series smart actuator, PSL series actuator |
