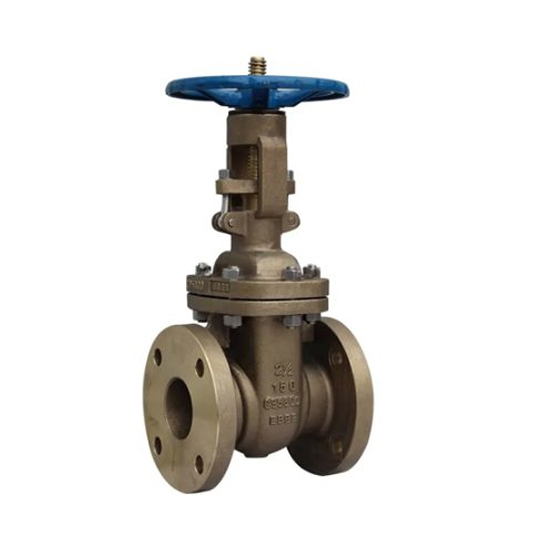

ASTM B148 C95800 Wedge Gate Valve, API 600, 2-1/2 IN, CL150

Key Specifications / Features

This Aluminum Bronze Wedge Gate Valve, manufactured to API 600 standards, features an ASTM B148 C95800 aluminum bronze body, providing exceptional strength and corrosion resistance. With a 2-1/2 inch (DN65) size and a pressure class of 150 LB (PN20), it is designed for reliable operation in various industrial applications. The handwheel-operated valve ensures precise flow control, while the FF flanged ends allow for secure connections.

Cast Steel Gate Valves are engineered and manufactured to achieve minimal leakage of less than 100 ppm (parts per million) of volatile organic compounds (VOCs). Extensive baseline laboratory testing, including both static and cycle testing, has been conducted to establish the critical design parameters necessary for low-emission sealing in both the stem packing and bonnet gasket sealing areas.
To ensure consistency and reliability, We have developed an in-house testing procedure, which is periodically performed to verify that the standard product design and manufacturing criteria consistently meet the stringent requirement of 100 ppm VOC leakage prior to shipment. This ensures that Cast Steel Gate Valves maintain high-performance standards while minimizing environmental impact.

Technical Specifications

» Nominal Diameter: NPS 2-24 Inch (DN50-DN600)
» Design Pressure: Class 150 LB (PN10, PN16)
» Materials: ASTM B148 C95400, C95500, C95800, B150 C63000, C63200
» End Connections: Flanged (FF, RF) to international standards
» Operation: Hand wheel, bevel gear, electric, pneumatic
» Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.25
» Temperature Range: -29°C to 280°C
» Medium: Sea Water, Offshore, Marine

Product Features

» Anti-Friction Ball Thrust Bearing – Ensures smooth operation by reducing friction.
» Grub Screw – Secures the yoke nut in the bonnet.
» Grease Nipple – Allows lubrication of mating parts.
» OS&Y (Outside Stem and Yoke) – External stem and yoke design.
» Optional Locking Device or Stem Extension – Provides added flexibility.
» Optional Direct Mounting to ISO 5211 – Simplifies actuator mounting.
» Full Port – Ensures optimal flow with minimal pressure drop.
