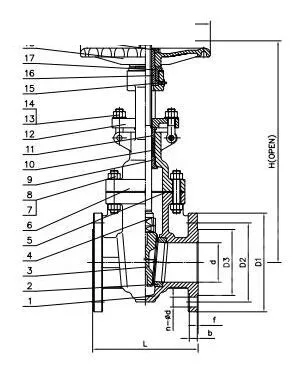

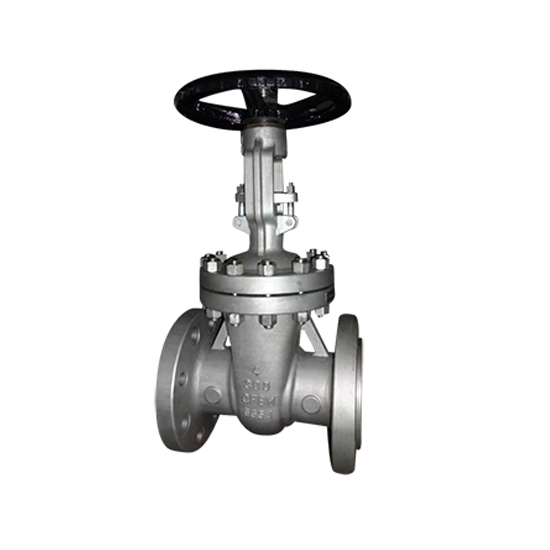

API 600 Wedge Gate Valves, ASTM A351 CF8, 4 IN, CL300, OS&Y

Key Specifications / Features

The API 600 Wedge Gate Valve features an ASTM A351 CF8 stainless steel body for superior corrosion resistance. With a 4-inch size (DN100) and a pressure rating of Class 150 LB (PN20), it is designed for reliable performance in industrial systems. The valve incorporates a bolted gland, bolted bonnet, and outside screw and yoke for enhanced durability and ease of maintenance. Equipped with RF ends, it ensures secure and leak-tight connections.

Cast Steel Gate Valves are designed and manufactured to achieve less than 100 ppm (parts per million) leakage of volatile organic compounds (VOCs). Extensive laboratory testing, including both static and cycle tests, has been conducted to establish the critical design parameters required for low-emission sealing, particularly in the stem packing seal area and the bonnet gasket sealing area. An in-house testing procedure is periodically carried out to ensure that the valve consistently meets the 100 ppm VOC leakage standard before shipment, guaranteeing reliable performance and compliance with emission requirements.

Technical Specifications

» Nominal Diameter: NPS 1/2-48 Inch (DN15-DN1200)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M, A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN), B148 C95800, C95500
» End Connections: Flanged (FF, RF, RTJ) to international standards
» Operation: Hand wheel, bevel gear, electric, pneumatic
» Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5, 22 Inch, 26-36 Inch to MSS-SP-44 or to API 605 on request
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.25
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.

Product Features

» Anti-friction Ball Thrust Bearing: Reduces friction for smooth operation.
» Grub Screw: Secures the yoke nut in the bonnet.
» Grease Nipple: Lubricates mating parts.
» OS&Y (Outside Stem and Yoke): External stem and yoke design.
» Metal-sealed: Available with API Trim #1, #5, #8, #10, etc.
» Optional Locking Device: For added security.
» Optional Stem Extension: For extended applications.
» ISO 5211 Direct Mounting: Easy actuator integration.
» Full Port: Ensures minimal flow restriction.
