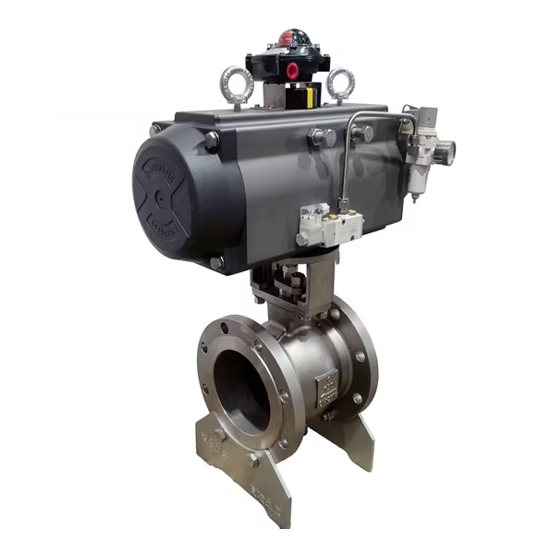

Pneumatic Actuator Eccentric Semi Ball Valve Hard Seated
- Type:
- C Type Ball Core
- Size:
- DN100*150
- Application:
- Industrial Usage, Water Industrial Usage, Wide Usage
- Structure:
- Fixed Ball Valve
- Nominal Pressure:
- ANSI CLASS 150-900
- Standard:
- ASTM
- Temperature:
- -40℃~450℃
- HS Code:
- 8481804090
Pneumatic Eccentric Semi Ball Valves
It features no-friction in the switching process, low wear of the seal, and small opening/closing torque. It controls the pipeline medium by having the hemisphere rotate around the eccentric axis.
During the switching process, no friction occurs between the hemisphere and the valve seat sealing surface, reducing the wear of the sealing components and significantly increasing the service life.
Due to the extremely similar structural principle of the pneumatic eccentric hemisphere valve to the operation form of the three-eccentric butterfly valve, some people refer to the eccentric hemisphere valve as a butterfly valve of the spherical type.
| Product Name | Pneumatic Eccentric Ball Valves |
| Model No. | PQ640F, PQ640H |
| Actuator | Pneumatic |
| Ball Core | Semi ball |
| Body Material | WCB, Stainless Steel, Duplex Steel, Special Alloy Steel, etc. |
| Size | DN25-DN300 |
| Normal Pressure | PN10, PN16, PN25, PN40, PN64 |
| Suitable Medium | Steam, Water, Oil, Gas, Corrosive Medium |
| Sealing surface material | PTFE, PPL, metal hard sealing |
| Working Temp. | Soft sealing: -29~+150℃. Hard sealing: -150~+450℃ |
| Conection Ends | RF |
| Product Features | Anticorrosion, Anti-abrasion, High strength (Meet the needs of different occasions) |
| Leakage Rate Q | Soft sealing VI, Hard sealing IV |
| Control Mode | Switch Type, Regulatory Type |
| Usage | Petroleum, chemical, paper production, and wastewater treatment, etc |
| Brand | Aogong |
| Driving Form | Air Compression 4-7ba |
| Certificates | CE, TS, ISO9001, ISO14001, API 6D, API 607, API 6FA |
