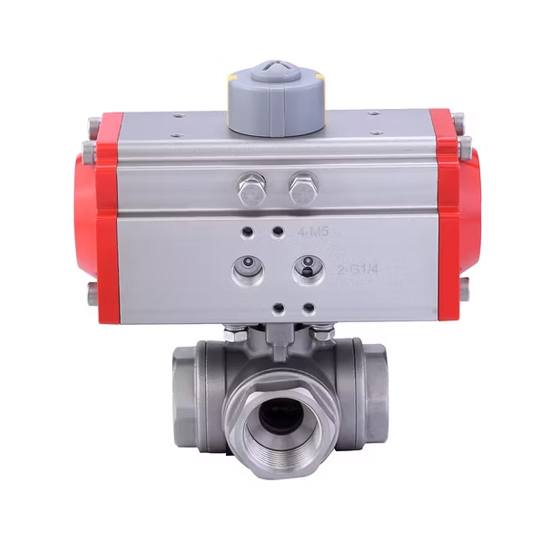

3 Way Air Premium Stainless Steel 304 316 Pneumatic Actuator Ball Butterfly Control Valve for Liquids Rotary Spring Return
- Type:
- Fixed Ball Valve
- Body Material:
- Wcb, CF8, CF8m, Ti, Ni
- Application:
- Industrial Usage, Water Industrial Usage
- Temperature Range:
- PTFE:-20~180/Tmf :-50~270/ Rptfe:-35~210
- Structure:
- Fixed Ball Valve
- Nominal Pressure:
- 10000psi (Pn63 )for 1/2'' -4''
- Standard:
- Standard
- Temperature:
- Normal Temperature
- HS Code:
- 8481804090
Ball valve with Pneumatic Actuator - Three piece type
Data:
1.Screw Type: NPT.BSPT.BSP,ISO-228 Class A Thread
2.Temperature range : PTFE:-20~180
TMF :-50~270
RPTFE:-35~210
3.Body Material :WCB,CF8,CF8M,TI,NI
4.Suitable Medium:Water.oil,air and some corrosive liquid
5.Nominal pressure :10000PSI (PN63 )For 1/2'' -4''
6.Anti roll stem
7.Locking device
| Mode | Inch | DN | d | L | h | b | ISO5211 | Actuator |
| RBVP14-15 | 1/2'' | 15 | 12 | 72 | 8.5 | 9 | F03/F04 | RAT052DA |
| RBVP14-20 | 3/4'' | 20 | 15 | 82 | 9.5 | 9 | F03/F04 | RAT052DA |
| RBVP14-25 | 1'' | 25 | 18 | 90 | 11 | 11 | F04/F05 | RAT052DA |
| RBVP14-32 | 1-1/4'' | 32 | 25 | 128 | 12 | 11 | F04/F05 | RAT063DA |
| RBVP14-40 | 1-1/2'' | 40 | 32 | 137 | 16.5 | 14 | F05/F07 | RAT075DA |
| RBVP14-50 | 2'' | 50 | 38 | 154 | 16.5 | 14 | F05/F07 | RAT083DA |
| RBVP14-65 | 2-1/2'' | 65 | 48 | 185 | 20 | 17 | F07/F10 | RAT092DA |
| RBVP14-80 | 3'' | 80 | 55 | 212 | 20 | 17 | F07/F10 | RAT105DA |
| RBVP14-100 | 4'' | 100 | 74 | 254 | 22.5 | 19 | F07/F10 | RAT125DA |
SPECIFICATION
Body meterial: CF8M,CF8,CF3M
Additive: PTFE PPL flexible graphite
FEATURES
1. Unique design and beautiful appearance
2. High platform structure and connection to ISO5211, making installation of electric/pneumatic actuator
more professional.
3. Valve body is overlaid with reinforced bar, it can be permanently used in caustic media ,keep itself from
cracking and avoid the failure of parts of valve during installtion.
4. Grinding process of valve stem to reduce the moment of electric/pneumatic valve during assembly and
make it runmore flexible.
5. The body of carbon steel ball valve is phosphate coated, no fade ,rustless , durable and beautiful.
