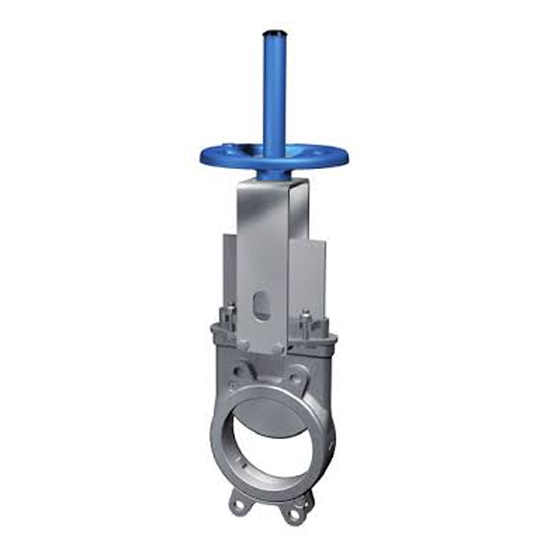

Rising Stem Knife Gate Valve, A351 CF8M, DN100, PN10, 4 Inch

Key Specifications / Features

The Rising Stem Knife Gate Valve, manufactured with an ASTM A351 CF8M body, features a 4-inch (DN100) size and is rated for PN10 pressure class and Class 150 LB. Designed for unidirectional flow, this valve has wafer ends for easy installation and is handwheel operated for smooth and reliable control.

The manual knife gate valve is a unidirectional wafer knife edge gate valve designed for on-off operations in industrial pipelines. Its body and seat structure prevents clogging, ensuring reliable shutoff even with fine particles in the flow. The beveled knife edge allows the gate to easily cut through thick media. To meet various working conditions, the following types of knife gate valves are available:
» Non-rising stem knife gate valve
» Wafer knife gate valve
» Lugged knife gate valve
» Pneumatic knife gate valve
» Electric knife gate valve
» Manual knife gate valve
» Bevel gear knife gate valve


Technical Specification

» Structure: Unidirectional Wafer Knife Wedge Gate Valve
» Nominal Diameter: NPS 2-24 Inch (DN50-DN600)
» Design Pressure: PN10, PN16, Class 150 LB
» Max Working Pressure:
   DN50 to DN250: 10 bar
   DN300 to DN450: 7 bar
   DN500 to DN600: 4 bar
» Body Material: Ductile Iron, Carbon Steel, Stainless Steel, Special Alloys, etc.
» Disc Material: Stainless Steel Chrome Plated, Special Alloys, etc.
» Seat Material: Stainless Steel + STL, EPDM (120°C), Viton (200°C), PTFE (200°C), NBR (80°C)
» Flange Standard: GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN 1092-1
» Face to Face: MSS SP-81
» Applications: Pulp & Paper, Water Treatment, Beverage & Food, Fine Chemicals, Power Plants, Steel Industry, etc.
» Temperature Range: -29°C to +538°C

Product Features

» High Flow Capacity: Achieves low load loss. The gate's rounded edges prolong the working life of the rings and packing.
» Correct Mounting Indicator: A directional arrow on the body indicates the correct mounting position.
» Versatile Drive Options: Equipped with a protector tube, the valves offer interchangeable drives between handwheel and pneumatic actuator.
» Corrosion Protection: Coated with epoxy paint to protect against corrosion. Suitable for water with up to 5% concentration of solid particles.
