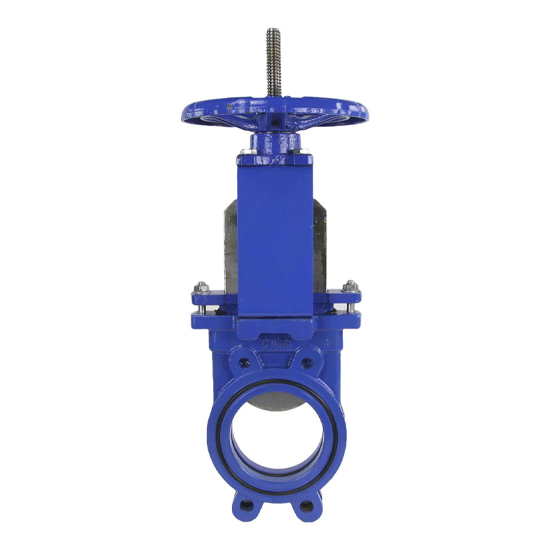

ASTM A216 WCB Knife Gate Valve, Carbon Steel, DN80, PN10, RS
- Product Name:
- ASTM A216 WCB Knife Gate Valve, Rising Stem
- Type:
- Unidirectional Knife Gate Valve
- Body Material:
- ASTM A216 WCB, Cast Carbon Steel
- Size:
- DN80, 3 Inch
- Pressure:
- PN10, Class 150 LB
- End Connection:
- Lug/Wafer
- Operation:
- Manual
- Temperature Range:
- -29°C to 538°C
- Medium:
- Used for pulp, coal ash, sewage, food, etc
Key Specifications / Features
The ASTM A216 WCB Knife Gate Valve from our supplier is a high-quality unidirectional valve designed for reliable performance. It features a rising stem mechanism and a robust cast carbon steel body, ensuring durability and strength. With a DN80 (3-inch) diameter and a pressure rating of PN10 (Class 150 LB), this valve is suitable for a variety of industrial applications. Available in lug or wafer configurations, it offers flexibility in installation.
The KU-series manual knife gate valve is a unidirectional wafer-type valve designed for on-off operation in industrial pipelines. Its body and seat structure prevents clogging and ensures reliable shutoff when handling flow containing fine particles. The beveled knife edge allows the gate to cut through thick media with ease. Depending on the application, various configurations are available, including non-rising stem knife gate valves, wafer knife gate valves, lugged knife gate valves, pneumatic knife gate valves, electric knife gate valves, manual knife gate valves, and bevel gear knife gate valves.
Technical Specification
» Structure: Unidirectional wafer knife edge gate valve
» Nominal Diameter: NPS 2-24 Inch (DN50-DN600)
» Design Pressure: PN10, PN16, Class 150 LB
» Temperature Range: -29°C to 538°C
» Max Working Pressure:
DN50-DN250: 10 bar
DN300-DN450: 7 bar
DN500-DN600: 4 bar
» Body Material: Carbon Steel, Stainless Steel, Special Alloy, etc.
» Disc Material: Stainless Steel Chrome Plated, Special Alloy, etc.
» Seat Material: Stainless Steel + STL, EPDM (120°C), Viton (200°C), PTFE (200°C), NBR (80°C)
» Flange Standard: GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN 1092-1
» Face to Face: MSS SP-81
» Medium: Pulp, Coal Ash, Sewage, Food, etc.
» Applications: Pulp & Paper, Water Treatment, Beverage & Food, Fine Chemicals, Power Plants, Steel Industry, etc.

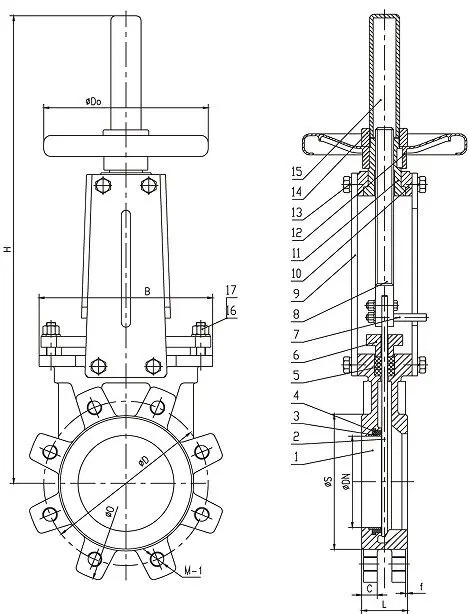

Structural Diagram
Product Features
» High flow capacity with low pressure loss; gate with rounded edges prolongs the service life of rings and packing.
» Directional arrow on the body indicates the correct mounting position.
» Protector tube; interchangeable drive options between handwheel and pneumatic actuator.
» Epoxy-coated body for corrosion protection.
» Recommended for water containing up to 5% solid particles.
