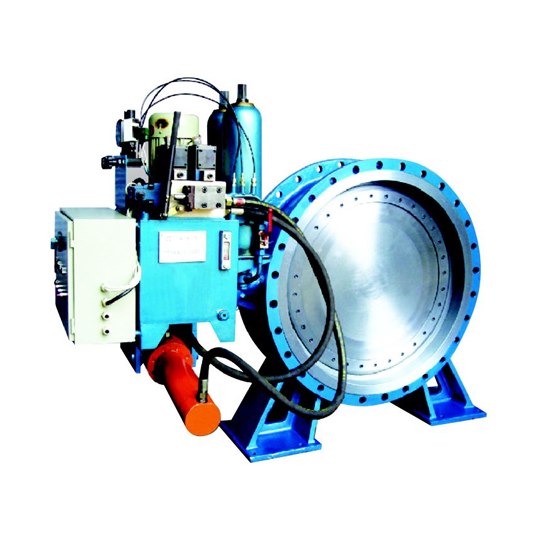

Hydraulic Counterweight Butterfly Valve, 6-138 Inch, Flanged

Key Specifications / Features

The Hydraulic Control Butterfly Valve is a versatile solution for fluid control systems, featuring a counterweight design for improved performance and stability. Available in a range of materials, including carbon steel, grey cast iron, and ductile iron, it is suitable for various industrial applications. With sizes ranging from 6 to 138 inches and pressure class ratings of 150 to 300 LB, this valve ensures reliable operation and efficient flow regulation in demanding environments. Ideal for systems that require precise, adjustable flow control.

Medium Temperature:
EPDM Seat: up to 80°C
Metal Seat: up to 425°C
Applicable Media: Fresh Water, Sea Water, Sediment Water, Oil, etc.
Opening valve time: 10 to 120 seconds (adjustable)
Quick closing time: 1.5 to 30 seconds (adjustable)
Slow closing time: 6 to 120 seconds (adjustable)
Fast close angle: 70° ± 10°
Slow close angle: 20° ± 10°
Open state minimum flow resistance coefficient: 0.1
Optional control power: AC 220V, DC 220V, DC 110V, DC 24V

Product Description

The hydraulic control butterfly valve represents the pinnacle of advanced pipeline control technology both domestically and internationally. It is primarily designed for installation at the turbine outlet in hydroelectric power stations, functioning as a turbine inlet valve. Additionally, it can be installed at the pump outlet in various pump stations, including those in water conservancy, electricity, water supply, and drainage systems. The valve operates in conjunction with the pipeline and the main equipment, adhering to the principles of the hydraulic transition process. By following preset opening and closing procedures and effectively mitigating water hammer in the pipeline, it ensures reliable pipeline cutoff and plays a crucial role in safeguarding the security of the pipeline system.
