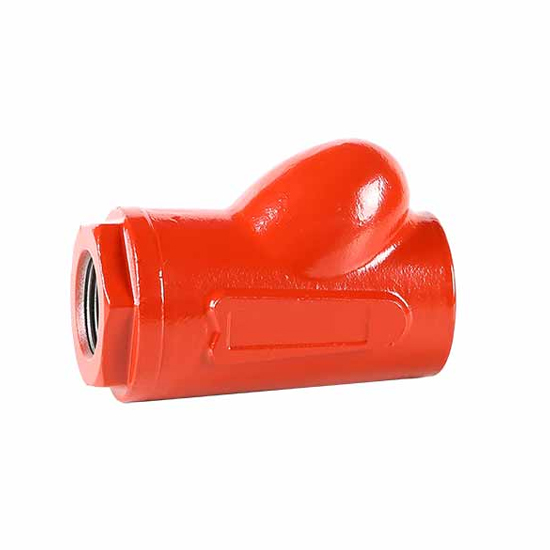

Carbon Steel Ball Check Valve, A216 WCB, 1 IN, 5000 PSI, NPT
- Product Name:
- Carbon Steel Ball Check Valve, Full Port
- Type:
- Ball Type Check Valve
- Body Material:
- ASTM A216 WCB Carbon Steel
- Size:
- 1 Inch, DN25
- Pressure:
- 5000 PSI
- End Connection:
- NPT Threaded
- Temperature Range:
- -20°C to 80°C
- Medium:
- Water, Oil, Gas, etc
Key Specifications / Features
The China Carbon Steel Ball Check Valve Plant offers a high-quality ASTM A216 WCB body valve, designed with a 1-inch (DN25) diameter and capable of withstanding pressures up to 5000 PSI. This valve features a full port design, ensuring minimal pressure drop and maximum flow efficiency. Its NPT threaded ends provide secure and easy connections, making it ideal for a variety of industrial applications.
This ball-type check valve is available in ductile iron, carbon steel, and aluminum bronze, in sizes ranging from 1 inch to 2 inches. Stainless steel balls are standard. Expect an extended life made possible by this valve's patented Hinge-Works feature. The valve is suitable for use in a variety of industrial applications, including hydraulics, pneumatics, pumps, and plumbing. The ball-type check valve is an ideal choice for oil & gas production lines where backflow is a concern. The ball-type check valve offers simplicity and is easily repairable. The function of the check valve is to prevent the backflow of medium in the pipeline.
Technical Specification
» Product: Ball-Type Check Valve
» Size Ranges: NPS 1–2 Inch (DN25–DN50)
» Pressure Range
Ductile Iron: 1000 to 2000 WOG
CS and SS: 2000 to 5000 WOG
» Seat and Seal: Viton
» NACE MR-0175 Compliance
» Threaded Ends: ANSI B1.20.1 (NPT)
» Inspection and Test: API 598

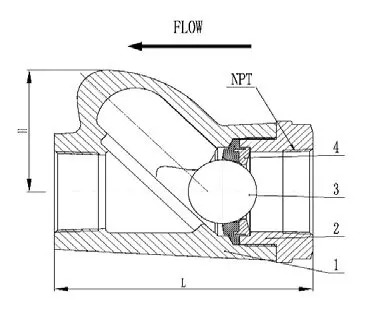

Structural Diagram
Main Parts and Materials
| No. | Part Name | Material | ||
| 1 | Body | ASTM A395 DI | ASTM A216 WCB | ASTM A351 CF8M |
| 2 | Bonnet | ASTM A395 DI | ASTM A216 WCB | ASTM A351 CF8M |
| 3 | Ball | SS 316 | SS 316 | SS 316 |
| 4 | Seat | VITON | VITON | VITON |
Main Dimensions (mm)
| Material | Size | Model | End | Pressure | L | H | Weight(kg) |
| Ductile Iron | 1 Inch | KBD06-10 | FNPT | 1000 | 114 | 52 | 1.7 |
| 1 Inch | KBD06-15 | FNPT | 1500 | 114 | 52 | 1.7 | |
| 1 Inch | KBD06-20 | FNPT | 2000 | 114 | 52 | 1.7 | |
| 2 Inch | KBD09-10 | FNPT | 1000 | 168 | 85 | 5.4 | |
| 2 Inch | KBD09-15 | FNPT | 1500 | 168 | 85 | 5.4 | |
| 2 Inch | KBD09-20 | FNPT | 2000 | 168 | 85 | 5.4 | |
| Carbon Steel | 1 Inch | KBC06-20 | FNPT | 2000 | 114 | 52 | 1.75 |
| 1 Inch | KBC06-30 | FNPT | 3000 | 114 | 52 | 1.75 | |
| 1 Inch | KBC06-50 | FNPT | 5000 | 114 | 52 | 1.75 | |
| 2 Inch | KBC09-20 | FNPT | 2000 | 168 | 85 | 5.65 | |
| 2 Inch | KBC09-30 | FNPT | 3000 | 168 | 85 | 5.65 | |
| 2 Inch | KBC09-50 | FNPT | 5000 | 168 | 85 | 5.65 | |
| Stainless Steel | 1 Inch | KBS06-20 | FNPT | 2000 | 114 | 52 | 1.8 |
| 1 Inch | KBS06-30 | FNPT | 3000 | 114 | 52 | 1.8 | |
| 1 Inch | KBS06-50 | FNPT | 5000 | 114 | 52 | 1.8 | |
| 2 Inch | KBS09-20 | FNPT | 2000 | 168 | 85 | 5.7 | |
| 2 Inch | KBS09-30 | FNPT | 3000 | 168 | 85 | 5.7 | |
| 2 Inch | KBS09-50 | FNPT | 5000 | 168 | 85 | 5.7 |
