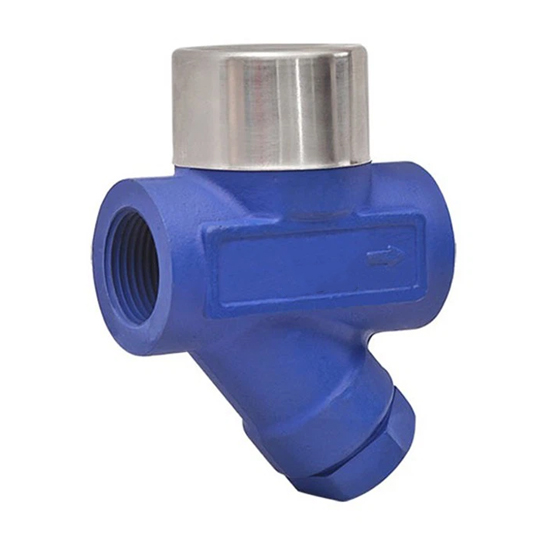

Thermodynamic Steam Trap, Carbon Steel, ASTM A105, DN25, PN16

Key Specifications / Features

The China Thermodynamic Steam Trap Manufacturer produces high-quality steam traps made from durable carbon steel (ASTM A105). These steam traps are designed for a size of DN25 (1 inch) and are rated for a pressure of PN16 (Class 150 LB). They feature standard 16T threads for easy installation and reliable performance. Suitable for various industrial applications, these steam traps ensure efficient condensate removal and energy savings in steam systems.

Thermodynamic Steam Trap is designed for use in steam pipelines and equipment to efficiently discharge condensate while preventing steam leakage, water hammer, and related system faults. Utilizing thermodynamic principles, the trap operates based on the differences in density and viscosity between steam and condensate. During operation, secondary evaporation occurs as condensate is released into a lower pressure zone, enabling reliable opening and closing of the disc valve to ensure effective condensate removal and energy conservation.

Technical Specifications

Model: STD 16T (Threaded Type)
» Size Range: 1/2-1 Inch (DN15-DN25)
» Pressure Rating: PN16, PN25, Class 150
» Material Options: ASTM A105, A182 F304, F316
» Maximum Allowable Pressure (PMA): 40 bar(g)
» Maximum Allowable Temperature (TMA): 300°C
» Maximum Differential Pressure (ΔPMX): 20 bar
» Medium: Steam and condensate

Product Features

» Operates based on the difference in density between vapor and liquid phases.
» Body and bonnet are made from forged or cast steel, ensuring strength and durability.
» Disc and seat are constructed from specially treated stainless steel, offering high wear resistance and dimensional stability under extreme temperature and pressure.
» Equipped with a stainless steel insulation cover to reduce heat loss and prevent air binding.
» Internal flow path is optimized according to the Bernoulli equation, ensuring efficient operation.
» Integrated strainer ensures the trap functions in a clean environment.
» High back pressure tolerance, with a back pressure ratio of up to 80%.
