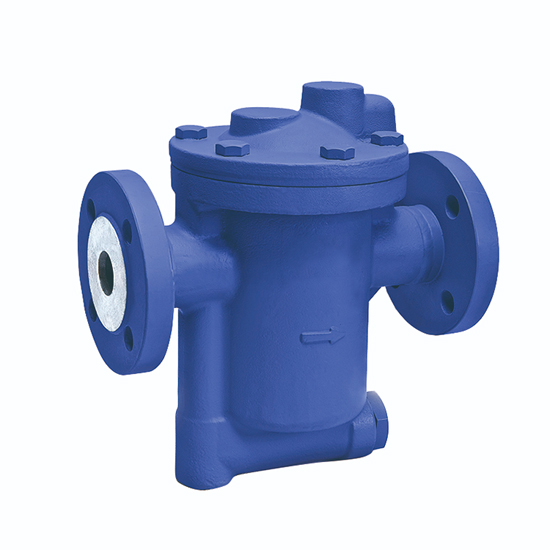

ISO 6552 Inverted Bucket Steam Trap, A216 WCB, DN32, PN16

Key Specifications / Features

The Inverted Bucket Steam Trap, manufactured in accordance with ISO 6552 or EN 26704 standards, features a durable carbon steel ASTM A216 WCB body. With a DN32 (1-1/4 inch) size and PN16 pressure rating (Class 150 LB), this steam trap is designed for efficient steam condensate management. It is equipped with 883F flanged ends for secure installation and reliable sealing.

The Inverted Bucket Type Steam Trap, a mechanical steam trap, offers outstanding performance and is suitable for low, medium, and high-pressure applications. It features stainless steel internal components and a heat-treatable steel base, providing a strong structure, resistance to abrasion and corrosion, long durability, and high reliability. This steam trap is highly recommended for condensate recovery systems due to its steam-saving capability, high heat engine efficiency, and anti-back pressure characteristic. Additionally, it can be assembled with a check valve to save piping space.

Technical Specifications

Normal Size Range: 3/4 Inch - 2 Inch (DN20-DN50)
Normal Pressure Rating: PN16, PN25 , Class 150 LB
Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
Maximum Allowable Pressure (PMA): 40 Barg
Maximum Allowable Temperature (TMA): 300°C
Maximum Differential Pressure (ΔPMX): 20 Bar
Medium: Steam condensate

Standards

Design and Manufacture: ISO 6552; EN 26704
Face to Face (End to End): EN 26554
Flanged Connection: GB/T 9113
Test and Inspection: EN 26948

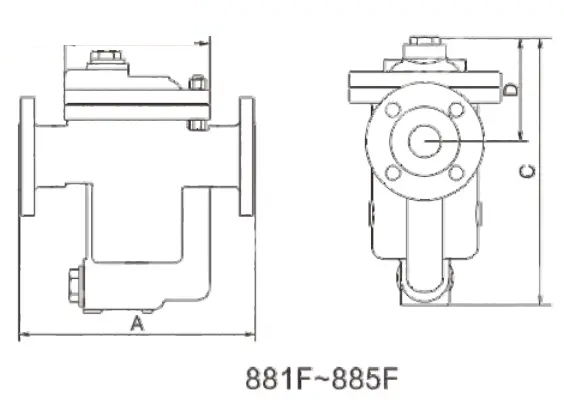

Main Dimensions
