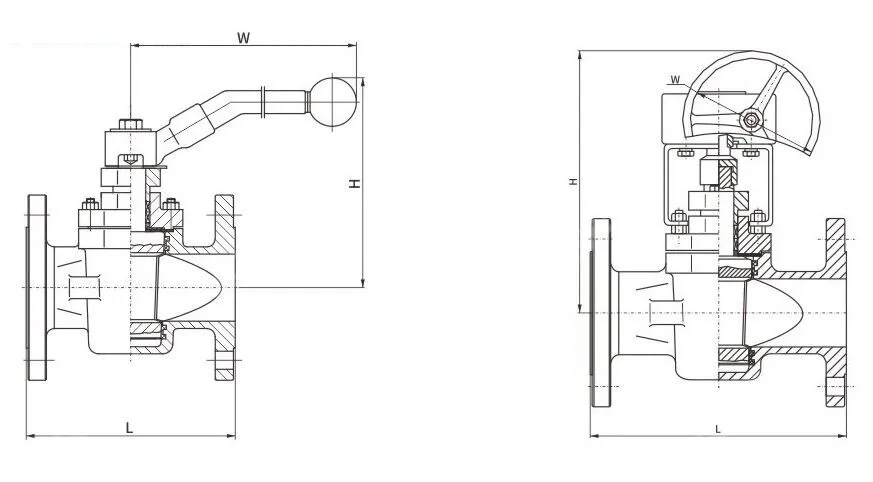

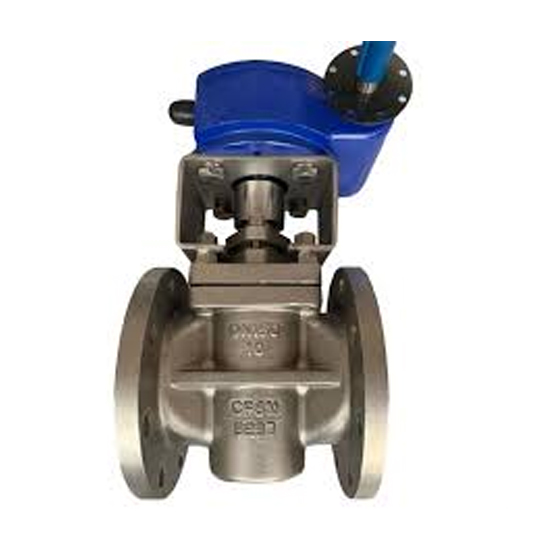

PTFE Sleeved Plug Valve, API 599, A351 CF8M, DN150, PN16

Key Specifications / Features

The PTFE Sleeved Plug Valve, manufactured to API 6D and API 599 standards, features a stainless steel ASTM A351 CF8M body for enhanced corrosion resistance. With a 6-inch (DN150) size, PN16 (Class 150 LB) pressure rating, and RF (Raised Face) ends, this valve is designed for reliable performance in fluid control applications. The PTFE sleeve provides excellent sealing and leak-tight operation.

The unique 360-degree metal lip protection fixed card ensures that the valve has no cavity where the medium can accumulate. The metal lip on the rotary plug provides a self-cleaning effect, making it suitable for working conditions with sticky media or where scaling is common. The valve allows two-way flow, offering more convenient installation.

Sleeve-type soft-sealing plug valves are commonly used in corrosive, highly toxic, and hazardous environments where leakage is strictly prohibited, or where the valve material must not contaminate the medium. The valve body material can be made from carbon steel, alloy steel, or stainless steel, depending on the working medium.

Technical Specifications

» Nominal Diameter: NPS 1/2-14 Inch (DN15-DN350)
» Design Pressure: Class 150-900 LB (PN20-PN160)
» Material:
   ASTM A216 WCB, WCC
   ASTM A352 LCB, LCC
   ASTM A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M
   ASTM A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN)
   ASTM B148 C95800, C95500
» Design Temperature: -46°C to +120°C
» Medium: Water, gas, oil, etc.
» Design Standard: API 6D, API 599
» Face to Face: ASME B16.10
» Connection End: RF, RTJ, BW
» Test Standard: API 598, ISO 5208
» Operation: Lever, worm gear, electric, pneumatic
» Applications: Petrochemical, chemical, natural gas, LPG, HVAC, food, and pharmaceuticals
» Basic Functions
   Function 1: Optional bore patterns: Venturi, Regular, Short, Standard
   Function 2: Metal-to-metal seated design
   Function 3: Injection grease-sealed design (for stem and seats)
   Function 4: Fire-safe design
   Function 5: Integral seat ring
