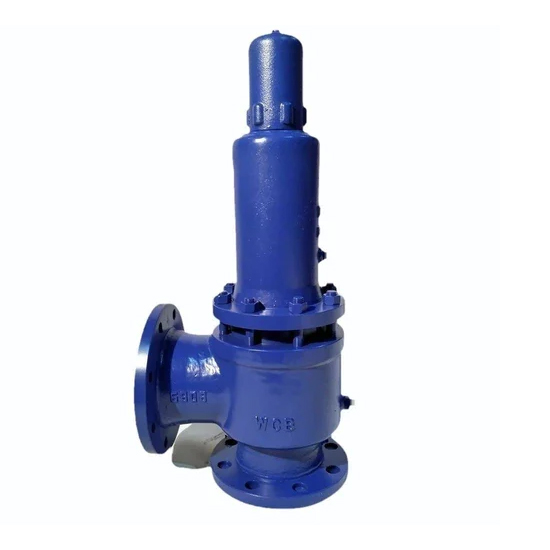

Full Lift Safety Valve, API 526, ASTM A216 WCB, 4 IN, 150 LB

Key Specifications / Features

This Full Lift Safety Valve, manufactured in China, is spring-loaded and designed according to API 526 standards. It features a carbon steel ASTM A216 WCB body for strength and durability. With a 4-inch size, Class 150 LB pressure rating, and flanged ends, it is suitable for pressure relief applications in various industrial systems.

The Spring Full Lift Safety Valve is designed for use in systems where the discharge conditions are relatively simple. It is suitable for applications where the discharge system pressure can be atmospheric, at a constant level, or where pressure may rise up to a maximum of 10% of the set pressure.

In cases where a constant back pressure is present, the valve should be set at the differential pressure. The valve disc features two types of sealing surfaces: a flat surface and a conical surface. The discharge area is calculated based on the cylindrical or conical surface formed between the valve disc and valve seat.

This valve is particularly suited for situations with small discharge capacity, high back pressure, and stable system pressure.

Technical Specification

» Size Range: 1/2-16 Inch (DN15-DN400)
» Pressure Rating: Class 150-600 LB (PN10-PN100)
» Design and Manufacture Standards: GB/T 12243-1989, API RP 520, 521, API 526, API 527
» Face to Face (End to End): GB/T 14087, JB/T 6441, JB/T 2203, JB/T 9624, JB/T 53170
» Flanged Connections: ASME B16.5, DIN 2543-2545, EN 12627
» Test and Inspection Standards: API 598, DIN 3230, MSS SP-117
» Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex, or Other Special Materials
» End Connections: Flanged (FF, RF, RTJ) to International Standards

Product Features

» Lighter and More Compact Construction: Continuous design improvements have resulted in smaller and lighter valves, aligning with industry trends for space and weight savings.
» Interchangeable Parts: The valve can be easily modified from one type to another—gas, liquid, conventional, or bellows—by changing just a few parts.
» Simplified Maintenance and Service: Re-engineering has reduced the number of parts, making maintenance easier and more cost-effective.
» Material Selection: A wide range of materials are available, including non-ferrous materials for low-temperature and oxygen service, as well as exotic alloys for use in chemical and process industries.

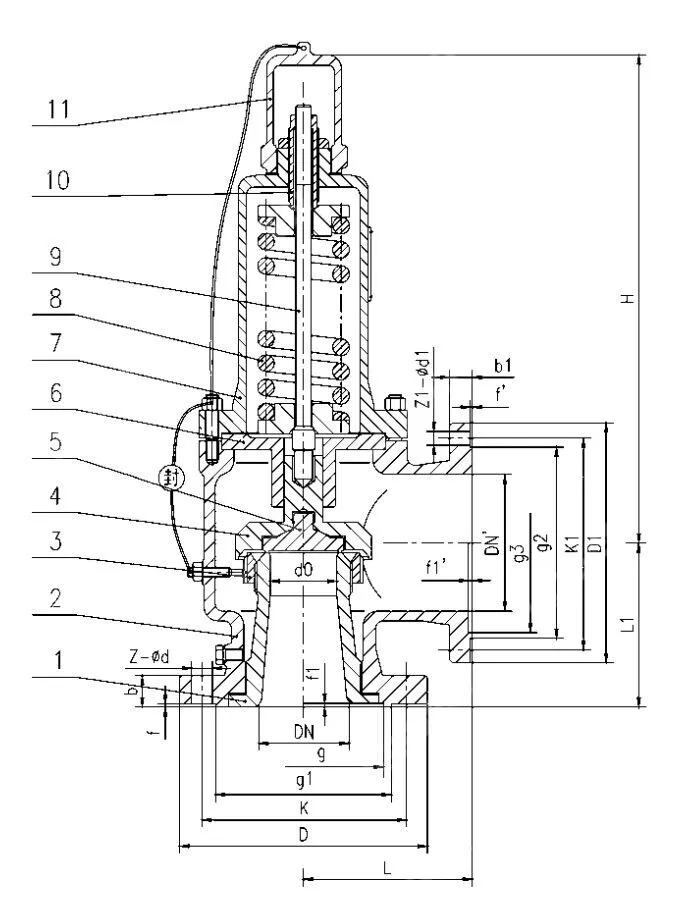

Main Parts and Materials
