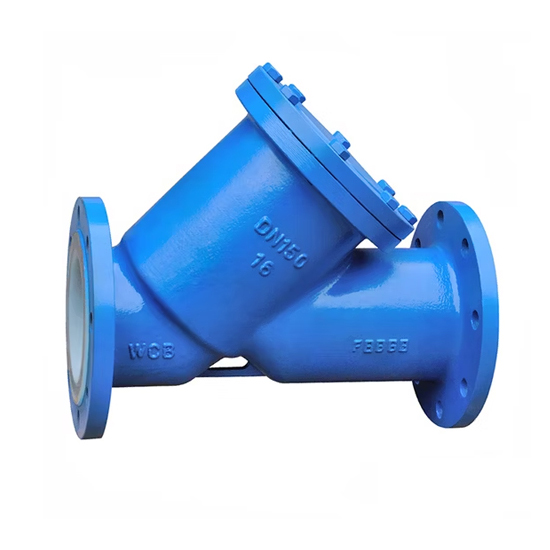

Fluorine Lined Y Strainer, A216 WCB, FEP Lining, DN150, PN16
- Product Name:
- Fluorine Lined Y Strainer
- Body Material:
- ASTM A216 WCB
- Size:
- DN150
- Pressure:
- PN16
- End Connection:
- RF Flanged
- Lining Material:
- FEP Fluorine
Key Specifications / Features
The Fluorine Lined Y Strainer, built with a carbon steel ASTM A216 WCB body and FEP lining, provides excellent corrosion resistance for handling aggressive fluids. Designed for DN150 (6-inch) pipelines, it operates at Class 150 LB (PN16) pressure rating with RF flanged ends for secure installation. Ideal for chemical, pharmaceutical, and industrial applications, it offers durability, reliability, and extended service life in harsh environments.
Product Range
» Product model: GL41F46
» Normal Size Range: DN25-DN300, 1-12 Inch
» Normal Pressure Rating: PN10-PN25, Class 150 LB
» Medium: Organic Acids, Strong Acids, Strong Oxidants
» Temperature Range: -50°C to +150°C
Fluorine-lined filters feature advanced lining technology, ensuring that all internal surfaces exposed to the medium are fully protected. The lining materials, typically fluoroplastics such as FEP (F46) and PCTFE (F3), provide excellent resistance to highly corrosive substances, including sulfuric acid, hydrochloric acid, aqua regia, organic acids, strong acids, and oxidizing agents. These filters are ideal for demanding chemical applications but are temperature-limited, operating effectively within a range of -50°C to 150°C.

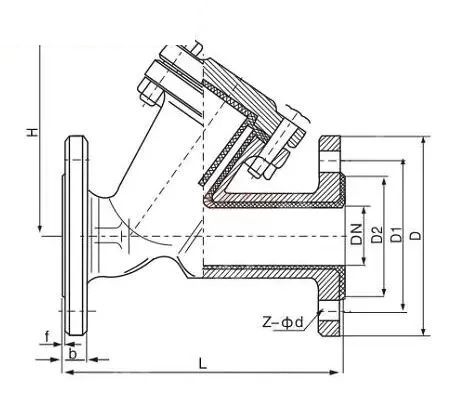

Material for Main Parts
| No | Name of Parts | Material |
| 1 | Body | ASTM A216 WCB |
| 2 | Bonnet | ASTM A216 WCB |
| 3 | Screen | PTFE(F4) |
| 4 | Bolt | AISI 1035, ASTM A193 B7 |
| 5 | Nut | AISI 1045, ASTM A194 2H |
| 6 | Lining | FEP(F46), PCTFE(F3) |
